Clump Finding — a synthetic, ground-truth example

This page is a self-contained, data-free worked example for the structure finder (clumpfind). It builds a small Mera simulation from scratch — a real HydroDataType + PartDataType on a self-consistent unit system, no RAMSES files — whose clump population is known exactly. Because the ground truth is known, every finder and every feature can be both exercised and scored (Adjusted Rand Index, completeness, purity, recovered mass, virial state). The same field drives the accuracy test test/54_clumpfind_synthetic_tests.jl, which runs in CI on every platform.

synthetic_clumps, save_synthetic_clumps and load_synthetic_clumps are part of Mera (source: src/functions/synthetic_clumps.jl).

Get the data

The generator is deterministic, so you can either regenerate the identical field locally or download the prebuilt dataset (≈1.8 MB, LZ4-compressed Mera/JLD2). Both need only using Mera.

using Mera

# Regenerate the identical field locally (deterministic — no download):
F = synthetic_clumps()
gas, particles, truth = F.gas, F.particles, F.truth

println("gas cells      : ", length(gas.data))
println("particles      : ", length(particles.data))
println("ground-truth clumps : ", length(truth))

*__   __ _______ ______   _______
|  |_|  |       |    _ | |   _   |
|       |    ___|   | || |  |_|  |
|       |   |___|   |_||_|       |
|       |    ___|    __  |       |
| ||_|| |   |___|   |  | |   _   |
|_|   |_|_______|___|  |_|__| |__|
Mera v1.8.0

gas cells      : 51514
particles      : 2438
ground-truth clumps : 8

# Option B — download the prebuilt dataset once (cached in `dir`), then load it:
D = load_synthetic_clumps(tempdir(); download=true)
gas, particles, truth = D.gas, D.particles, D.truth

The stored gas / particles are ordinary Mera data objects: every Mera verb (getvar, projection, clumpfind, …) works on them unchanged. Write the file yourself with save_synthetic_clumps(dir).

The field

Eight clumps are injected into a 128³ grid in a 1 kpc box (Gaussian gas overdensities; matching particle bags; plus a two-component kinematic stream for the phase-space finder):

• A–E — five isolated, self-gravitating (cold) clumps spanning ~2 dex in mass — the bread-and-butter case and the mass-function spectrum.
• Fhot — a massive but kinematically hot clump (σ = 28 km/s): spatially obvious yet gravitationally unbound — the boundedness/virial test case.
• G1 + G2 — two cores sharing one envelope, ~0.1 kpc apart — the deblending / substructure test case that single-threshold friends-of-friends cannot split.

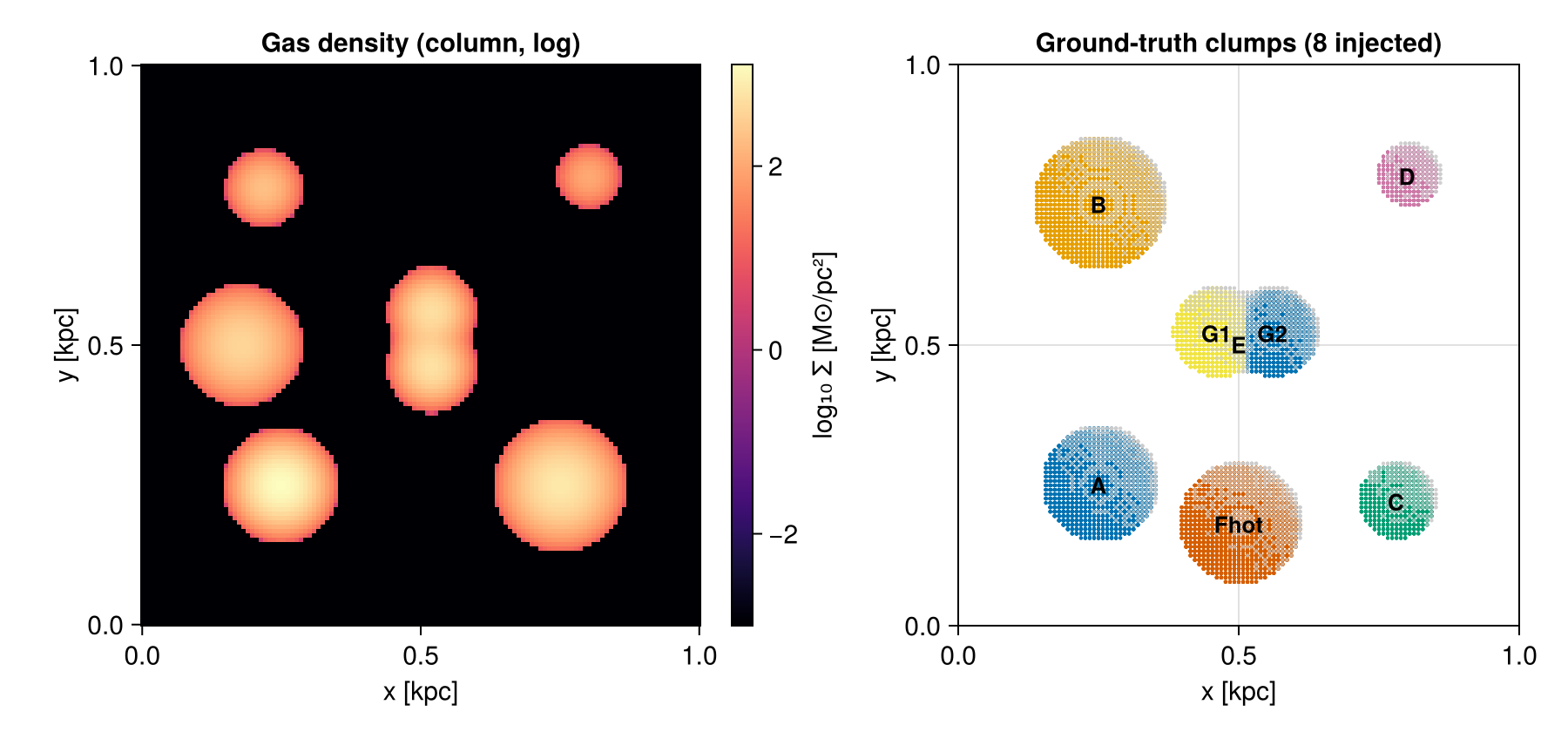

Left: the gas column density (note the G1+G2 "peanut" at centre). Right: the eight injected ground-truth clumps, coloured by id.

The data and finders are fully 3-D

The figures above collapse the box along z for display, but the field is a genuine 3-D volume and every finder runs in three dimensions. The clumps sit at different depths — in particular clump E (z ≈ 0.25) lies almost directly under the G1/G2 pair (z ≈ 0.75), so they overlap in the x–y projection yet are distinct in 3-D:

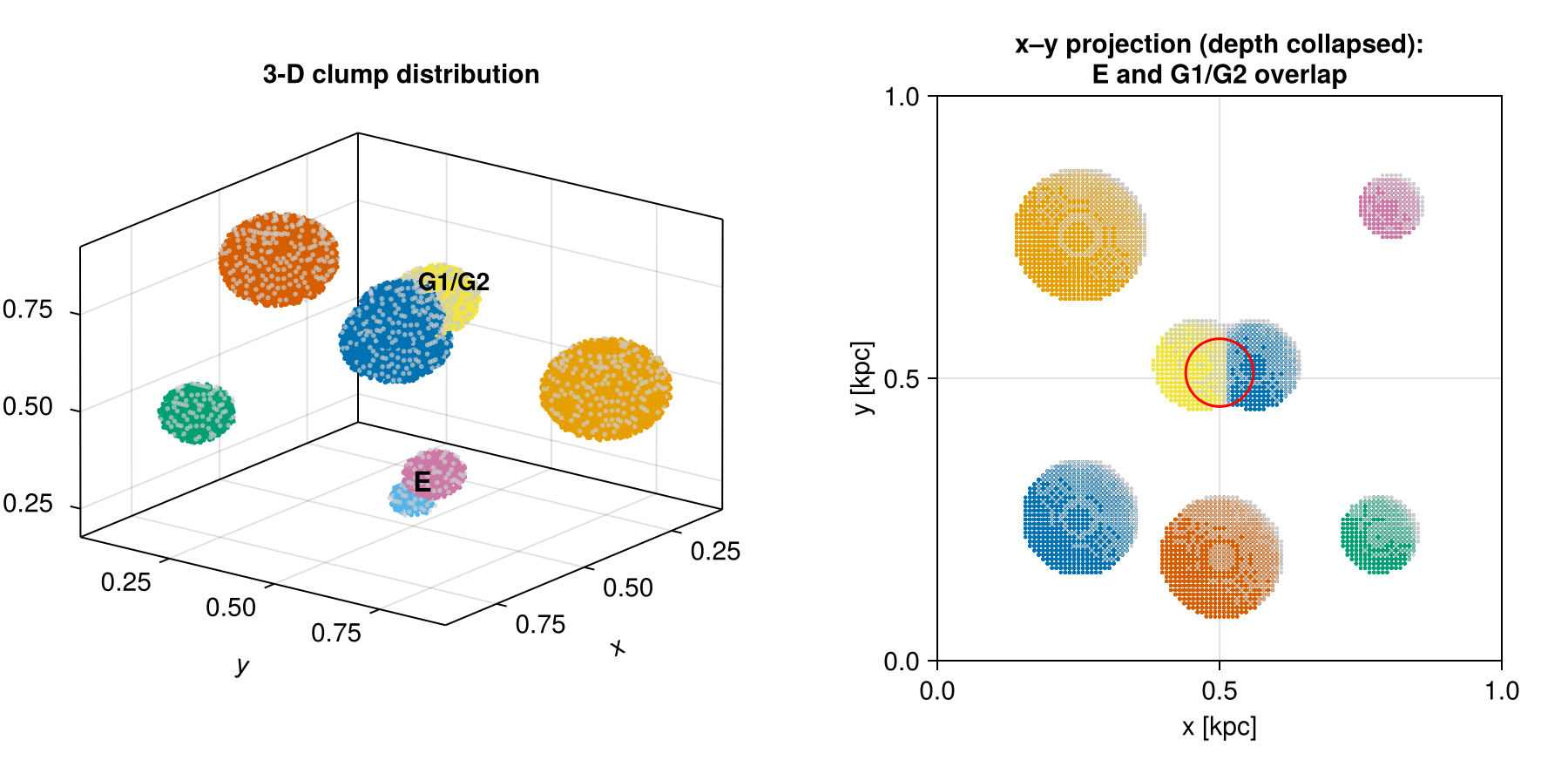

Left: the clumps in the 3-D volume. Right: the x–y projection — E and G1/G2 (red circle) land on the same sky position. A 3-D finder separates them by depth; a 2-D connected-component search on the projection would merge them. test/54 asserts exactly this.

# inspect the injected ground truth
for t in truth
    println(rpad(string(t.id), 4), "  pos=", round.(t.pos, digits=3))
end

1     pos=(0.25, 0.25, 0.5)
2     pos=(0.25, 0.75, 0.5)
3     pos=(0.78, 0.22, 0.5)
4     pos=(0.8, 0.8, 0.5)
5     pos=(0.5, 0.5, 0.25)
6     pos=(0.5, 0.18, 0.78)
7     pos=(0.46, 0.52, 0.75)
8     pos=(0.56, 0.52, 0.75)

Run every finder and score it

clump_recovery compares a finder's per-cell labelling against the known truth labels. We build the candidate points once, attach the true label of each, then label with each finder:

ll, thr = 2.0/2^7, 5.0
P    = Mera._make_points(gas, :rho; threshold=thr, threshold_unit=:standard)
tlab = [F.true_label(P.x[i], P.y[i], P.z[i]) for i in eachindex(P.x)]
println("candidate cells above threshold : ", length(P.x))
println("ground-truth clumps             : ", length(unique(filter(>(0), tlab))))
println()
println(rpad("finder", 18), rpad("clumps", 8), rpad("ARI", 8), rpad("completeness", 14), "purity")

for fdr in (ThresholdFoF(:rho;     threshold=thr, linking_length=ll),
            DensityWatershed(:rho; threshold=thr, linking_length=ll, persistence=30.0),
            Dendrogram(:rho;       threshold=thr, linking_length=ll, min_delta=30.0),
            PersistenceFinder(:rho;threshold=thr, linking_length=ll, persistence=30.0),
            HDBSCANFinder(:rho;    threshold=thr, linking_length=ll))
    flab, _ = Mera._label(fdr, P)
    r = clump_recovery(flab, tlab)
    println(rpad(string(nameof(typeof(fdr))), 18),
            rpad(length(unique(filter(>(0), flab))), 8),
            rpad(round(r.ari, digits=3), 8),
            rpad(round(r.completeness, digits=3), 14),
            round(r.purity, digits=3))
end

candidate cells above threshold : 51514
ground-truth clumps             : 8

finder            clumps  ARI     completeness  purity
ThresholdFoF      7       0.953   1.0           0.927
DensityWatershed  8       0.998   1.0           0.994
Dendrogram        8       0.998   1.0           0.995
PersistenceFinder 8       0.998   1.0           0.995
HDBSCANFinder     7       0.953   1.0           0.927

All finders recover the isolated clumps with completeness 1.0; the deblending finders additionally resolve the touching pair, which is the only difference in their score.

Deblending the touching pair

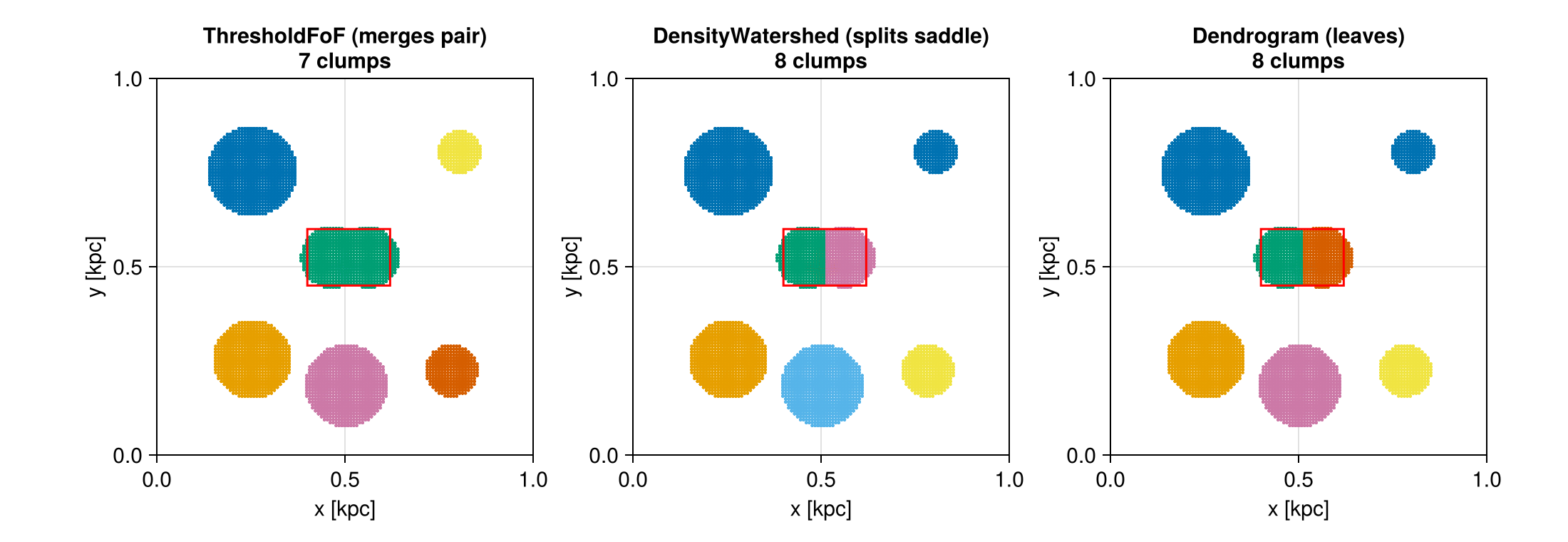

The red box marks G1+G2. ThresholdFoF connects them into one clump; the density-aware finders split them along the saddle:

near(c) = 0.40 < c.com[1] < 0.62 && 0.45 < c.com[2] < 0.60 && 0.68 < c.com[3] < 0.82
n_fof = count(near, clumpfind(gas, ThresholdFoF(:rho; threshold=thr, linking_length=ll)).clumps)
n_ws  = count(near, clumpfind(gas, DensityWatershed(:rho; threshold=thr, linking_length=ll,
                                                    persistence=30.0)).clumps)
println("ThresholdFoF clumps near G1/G2     : ", n_fof, "   (merged)")
println("DensityWatershed clumps near G1/G2 : ", n_ws,  "   (split)")

# the same two cores appear as bound substructure of the single FoF clump:
csub = clumpfind(gas, :rho; threshold=thr, linking_length=ll, substructure=true)
println("a FoF clump with 2 bound subclumps : ",
        any(get(c, :n_subclumps, 0) == 2 for c in csub.clumps))

ThresholdFoF clumps near G1/G2     : 1   (merged)
DensityWatershed clumps near G1/G2 : 2   (split)
a FoF clump with 2 bound subclumps : true

Accuracy, boundedness and the mass function

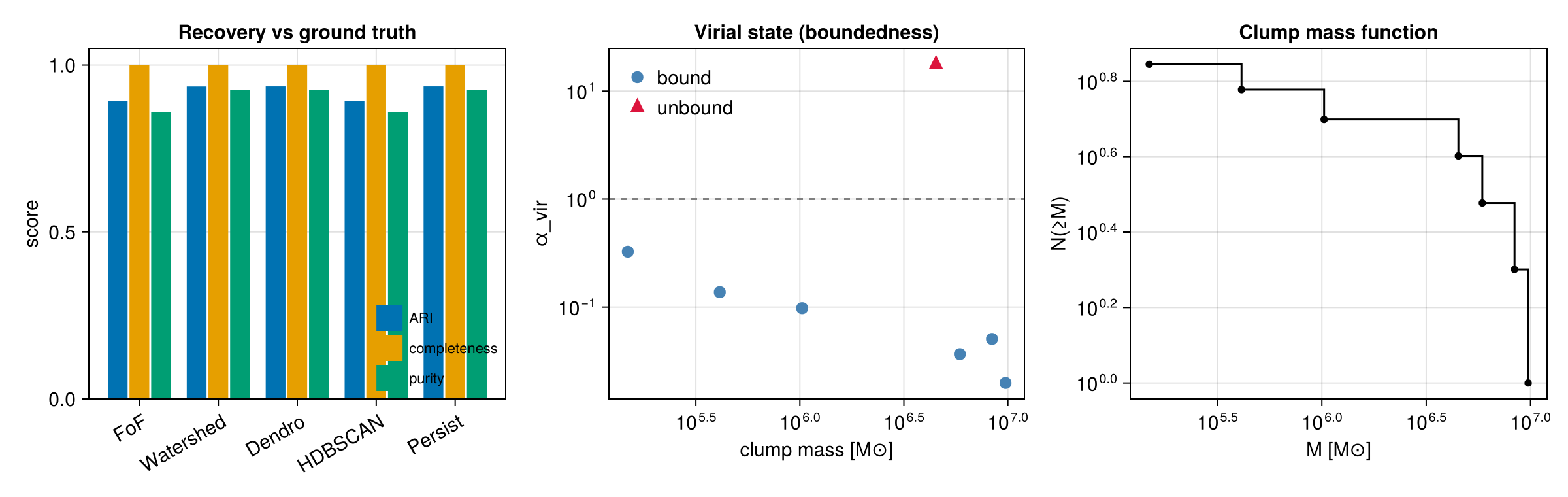

Left: recovery metrics per finder. Centre: with boundedness=true the six cold clumps land at α_vir ≪ 1 (bound) while the hot clump Fhot sits at α_vir ≈ 18 (unbound) — the finder labels it bound=false. Right: the recovered cumulative clump mass function.

cat = clumpfind(gas, ThresholdFoF(:rho; threshold=thr, linking_length=ll);
                boundedness=true, egrav=:tree)
println("clumps (incl. unbound Fhot) : ", cat.nclumps)

bound = clumpfind(gas, ThresholdFoF(:rho; threshold=thr, linking_length=ll);
                  validators=[Bound(:tree), VirialBelow(2.0)])
println("clumps after virial filter  : ", bound.nclumps)
println("Fhot removed                : ", bound.nclumps == cat.nclumps - 1)

clumps (incl. unbound Fhot) : 7
clumps after virial filter  : 6
Fhot removed                : true

Backgrounds & noise — telling clumps from the ISM floor

Real clumps don't sit on a flat floor; they're embedded in a structured, turbulent ISM. The generator can place the same eight clumps in different environments via synthetic_clumps:

flat   = synthetic_clumps()                                   # flat floor (the default)
noisy  = synthetic_clumps(noise=0.35, lmax=6)                 # +35% log-normal density noise
galaxy = synthetic_clumps(background=:galaxy, noise=0.2, lmax=6)   # clumps inside an exp. ISM disk

• Turbulent floor — log-normal per-cell noise far below the threshold is simply rejected: the resolved clumps are still recovered and the floor produces no spurious clumps.
• Structured disk — when the diffuse ISM itself rises above the threshold, the choice of finder becomes decisive:

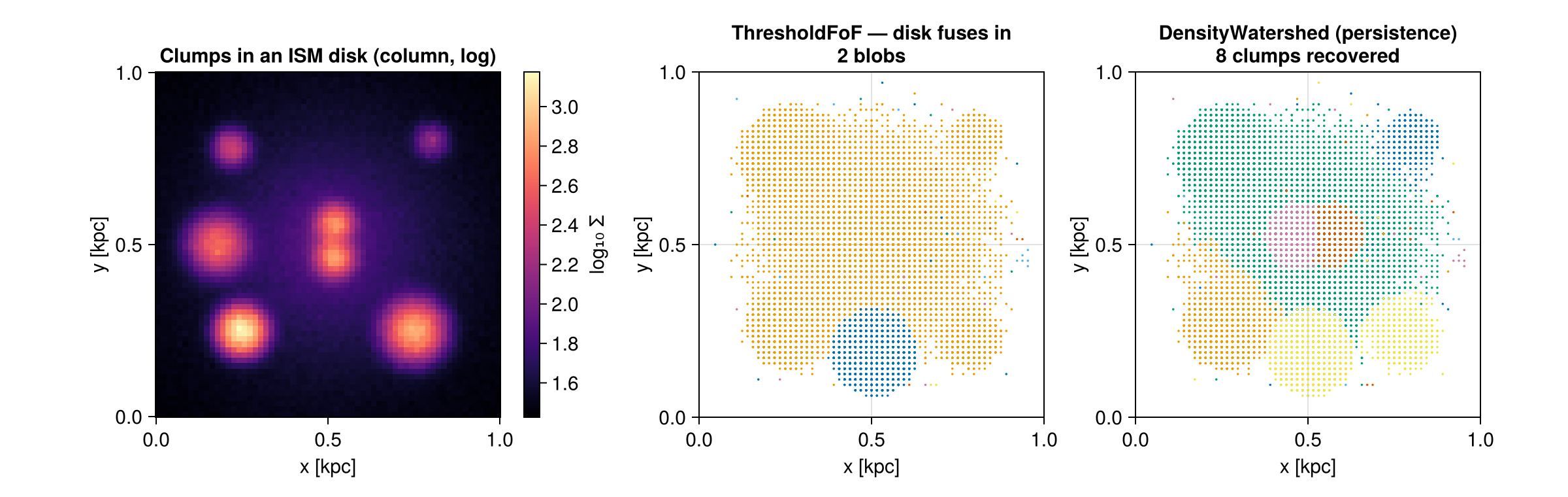

Left: the eight clumps embedded in a smooth exponential disk. Centre: a fixed-threshold ThresholdFoF connects the elevated disk and the clumps into 2 giant blobs — only 2 of 8 clumps are detected. Right: DensityWatershed (and Dendrogram/PersistenceFinder with a prominence/min_delta cut) reject the smooth floor by density contrast and recover all 8.

galaxy = synthetic_clumps(background=:galaxy, noise=0.2, lmax=6)
gasg = galaxy.gas
thr2, ll2 = 4.0, 2.0/2^6

peakpos(cat) = [c.peak_pos for c in cat.clumps]
ndet(cat) = count(t -> any(p -> sum((p .- t.pos).^2) < 0.05^2, peakpos(cat)), galaxy.truth)

n_fof = ndet(clumpfind(gasg, ThresholdFoF(:rho; threshold=thr2, linking_length=ll2);
                       min_members=20))
n_ws  = ndet(clumpfind(gasg, DensityWatershed(:rho; threshold=thr2, linking_length=ll2,
                                              persistence=20.0); min_members=20))
println("ThresholdFoF on ISM disk     : ", n_fof, "/8  (disk fuses)")
println("DensityWatershed on ISM disk : ", n_ws,  "/8  (contrast wins)")

ThresholdFoF on ISM disk     : 2/8  (disk fuses)
DensityWatershed on ISM disk : 8/8  (contrast wins)

The lesson: on a structured background, prefer a density-contrast finder (DensityWatershed, Dendrogram with min_delta, PersistenceFinder, or HDBSCANFinder), or raise the threshold above the local ISM — a single absolute threshold with friends-of-friends will merge clumps into the floor. This is exactly what test/54_clumpfind_synthetic_tests.jl asserts.

Tuning — how the parameters behave

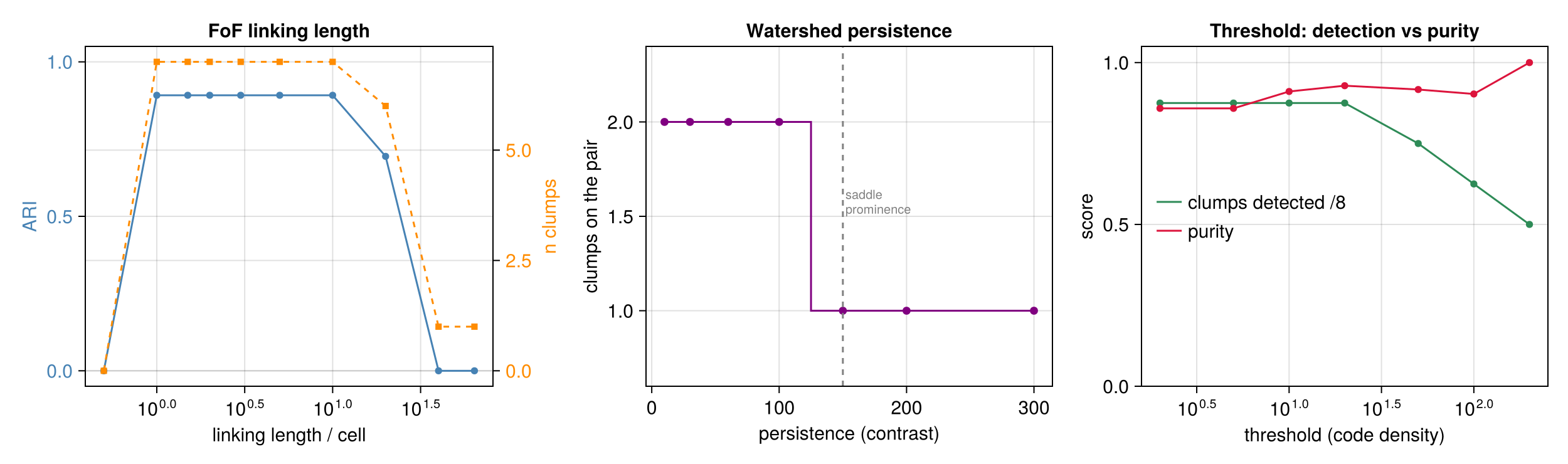

Because the ground truth is known, the bench doubles as a tuning guide: you can watch recovery respond as you turn each knob. Sweeping the three most important parameters:

• Linking length (ThresholdFoF) — left. Below one cell nothing links (empty catalog); then a wide stable plateau (ARI ≈ 0.89, 7 clumps) that is forgiving of the exact value; then a cliff where clumps fuse and the partition collapses toward a single blob. Pick a value a few cells wide — well inside the plateau, far from the cliff.
• Persistence / min_delta (DensityWatershed, Dendrogram, PersistenceFinder) — centre. A pure contrast knob: below the saddle prominence (~150 here) the touching pair splits into two; above it they merge into one. Set it to the smallest peak-to-saddle contrast you want to call a separate clump.
• Threshold — right. The classic detection-vs-purity trade-off: raising it sharpens purity (clumps shed their diffuse envelopes) but drops the low-mass clumps entirely (detection falls). Lower to be complete, raise to be clean.

for ll3 in (1, 2, 5) .* (1/128)
    cat = clumpfind(F.gas, ThresholdFoF(:rho; threshold=5.0, linking_length=ll3))
    println("ll=", round(ll3, digits=4), "  -> ", cat.nclumps, " clumps")   # all ~ 7
end

ll=0.0078  -> 7 clumps
ll=0.0156  -> 7 clumps
ll=0.0391  -> 7 clumps

test/54_clumpfind_synthetic_tests.jl pins these trends (plateau, over-merge cliff, the persistence split point, and the threshold dropout).

One figure — the gas column density

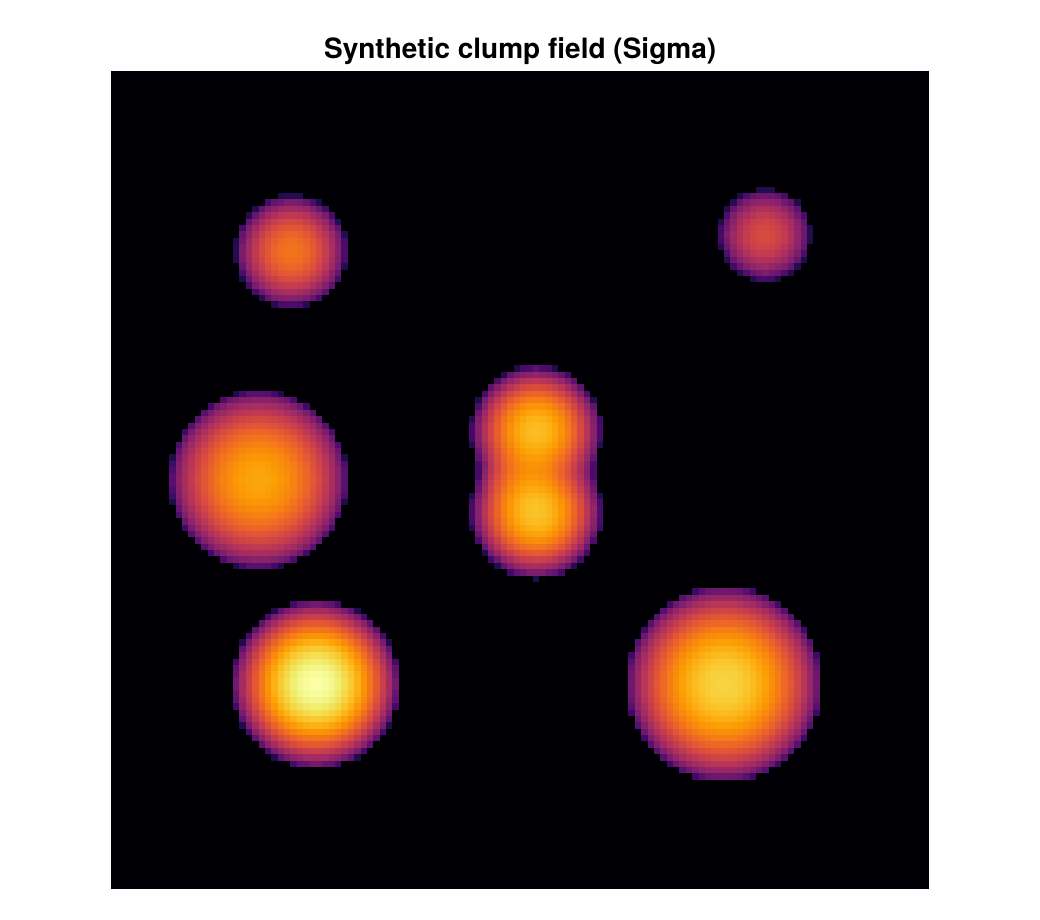

Collapse the box along z for display (the field and every finder are genuinely 3-D). Note the G1+G2 "peanut" near the centre.

using CairoMakie

sd = projection(gas, :sd, :Msol_pc2; direction=:z)
fig = Figure(size=(520, 460))
ax = Axis(fig[1,1]; title="Synthetic clump field (Sigma)", aspect=DataAspect())
hidedecorations!(ax)
heatmap!(ax, log10.(sd.maps[:sd]'); colormap=:inferno)
fig

[Mera]: 2026-08-03T11:34:04.043

domain:
xmin::xmax: 0.0 :: 1.0  	==> 0.0 [pc] :: 1000.0 [pc]
ymin::ymax: 0.0 :: 1.0  	==> 0.0 [pc] :: 1000.0 [pc]
zmin::zmax: 0.0 :: 1.0  	==> 0.0 [pc] :: 1000.0 [pc]

Selected var(s)=(:sd,)
Weighting      = :mass

Effective resolution: 128^2
Map size: 128 x 128
Pixel size: 7.812 [pc]
Simulation min.: 7.812 [pc]

Available threads: 4
Requested max_threads: 4
Variables: 1 (sd)
Processing mode: Sequential (single thread)

When to use which finder

What this synthetic bench shows about each algorithm, and the situation it's the right tool for:

Add boundedness=true (or a Bound validator) to any of them to keep only self-gravitating structures, and a validators chain to filter the catalog.

Rules of thumb: start with ThresholdFoF; reach for DensityWatershed/Dendrogram/ PersistenceFinder when clumps touch or sit on a structured background; use PhaseSpaceFoF when the separation is kinematic; and always score new settings against a known case — that's what synthetic_clumps() is for.

See Clump Finding for the full API, the seven finders, and the gravitational-boundedness / validator details.
