10. Radiative Transfer (RT)

Run it yourself

This page is also an executable Jupyter notebook: open / download 10_multi_RadiativeTransfer.ipynb. The notebooks run end-to-end and double as part of Mera's test suite.

RAMSES can run with radiative transfer (RT=1): on top of the gas it transports, per photon group g, a photon number density Npgand the photon fluxFxg/Fyg/Fzg (an M1 moment field, so nvarrt = 4·nGroups). Mera reads it with getrt, exactly like gethydro.

The whole tutorial is one pipeline: getinfo → getrt / gethydro → getvar → projection. Two objects, one bridge:

the photon field lives in the RT object (getrt),
the ionization state it produces (xHII, …) lives in the hydro object (gethydro),
Mera connects them through the RT descriptor index iIons.

We build it up simplest-first: one striking map in three calls, then RT photon fields, then the hydro to RT bridge, then physical units, then a reference card.

The physics we expect to see

The example is the RAMSES Strömgren-sphere test (stromgren.nml, here ramses-2025.05): a point source at the box corner ionizing a uniform neutral hydrogen medium (X=1, n_H≈10⁻³ cm⁻³, box 15 kpc, 3 photon groups).

A source emitting Ṅγ ionizing photons/s into gas of density n_H builds an ionized sphere whose photo-ionizations balance recombinations, the Strömgren sphere of radius

\[R_S = \left(\frac{3\,\dot N_\gamma}{4\pi\,\alpha_B\,n_H^2}\right)^{1/3},\]

bounded by a thin ionization front where xHII drops from ≈1 to ≈0. Because the medium is uniform and near photoionization equilibrium, both xHII and temperature are essentially single-valued functions of radius. The maps and profiles below recover exactly this picture (and we check R_S quantitatively at the end).

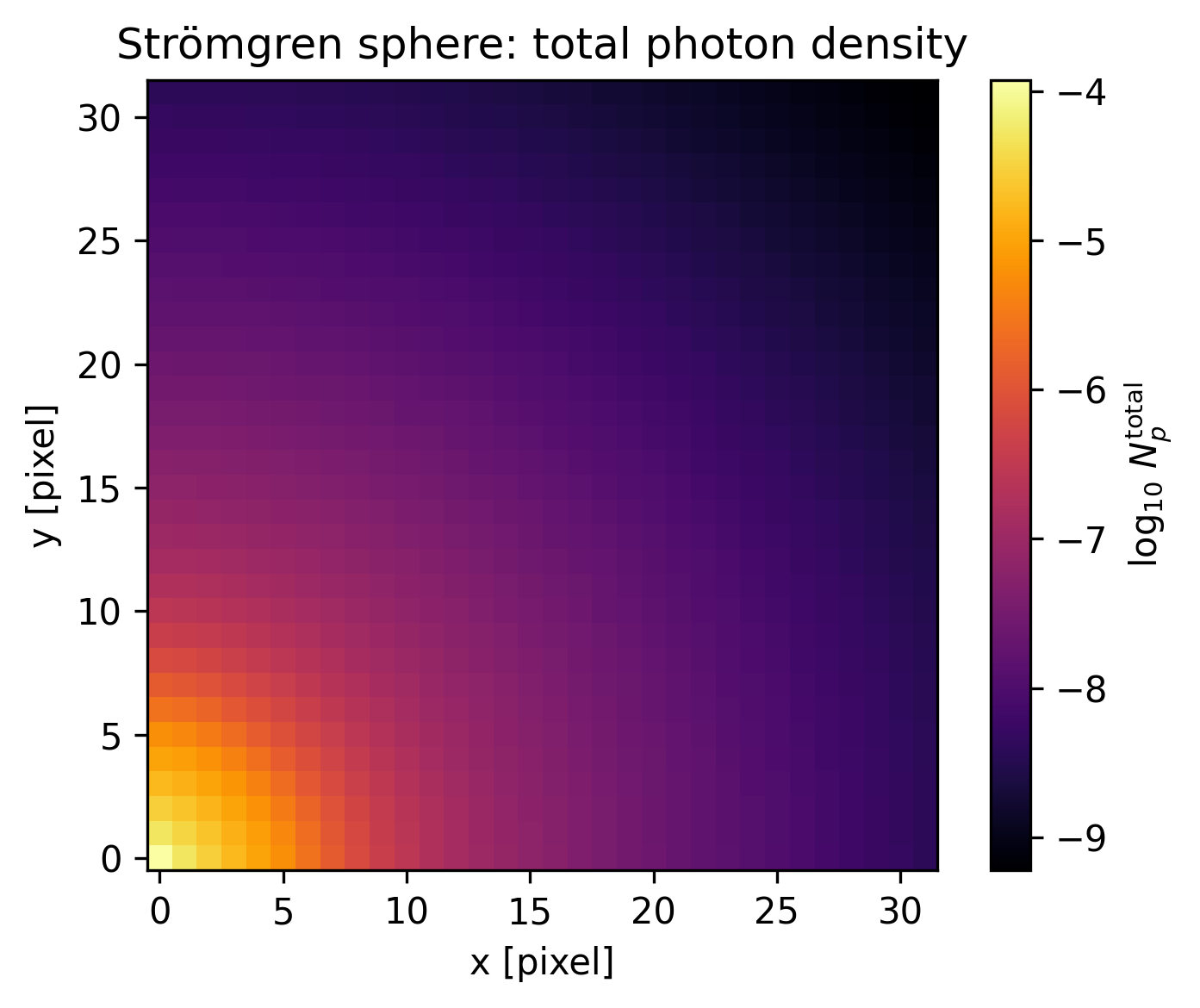

Hello RT, three calls and a map

The simplest end-to-end example: load the snapshot, load the RT data, project one field. projection flattens the 3D field onto a 2D map (here the volume-weighted average along z; the modes are defined once below). :Np_total is the sum over all groups, it needs no group or descriptor knowledge, so it is the perfect first look.

# Example-data root. Point this at your own simulation folder, or set the
# MERA_EXAMPLES environment variable; every path below is built from it.
MERA_EXAMPLES = get(ENV, "MERA_EXAMPLES", "/Volumes/FASTStorage/Simulations/Mera-Tests");

using Mera, PyPlot, Statistics
rc("figure", dpi=300); rc("savefig", dpi=300)

"Show a 2D Mera map (transpose to x–y; optional log10 with non-positive values blanked)."
function show_map(M; logscale=false, cmap="inferno", clabel="", ttl="")
    A = permutedims(M)
    logscale && (A = map(x -> x > 0 ? log10(x) : NaN, A))
    figure(figsize=(5,4)); imshow(A, origin="lower", cmap=cmap)
    colorbar(label=clabel); title(ttl)
    xlabel("x [pixel]"); ylabel("y [pixel]"); tight_layout()
end

path = "$MERA_EXAMPLES/RAMSES-PUBLIC/stromgren3d"   # published test simulation, see its README
info = getinfo(3, path)                 # prints the simulation overview incl. the RT block
rt   = getrt(info, verbose=false)       # → RtDataType, like gethydro
p    = projection(rt, :Np_total, verbose=false, show_progress=false)
show_map(p.maps[:Np_total]; logscale=true,
         clabel=L"$\log_{10}\,N_p^{\rm total}$", ttl="Strömgren sphere: total photon density")

*__   __ _______ ______   _______
|  |_|  |       |    _ | |   _   |
|       |    ___|   | || |  |_|  |
|       |   |___|   |_||_|       |
|       |    ___|    __  |       |
| ||_|| |   |___|   |  | |   _   |
|_|   |_|_______|___|  |_|__| |__|
Mera v1.8.0 | Julia 1.12.7 | 4 threads
[Mera]: 2026-08-31T13:57:52.461
Code: RAMSES
output [3] summary:
mtime: 2026-08-20T16:57:42.963
ctime: 2026-08-20T16:57:42.963
=======================================================
simulation time: 30.01 [Myr]
boxlen: 15.0 [kpc]
ncpu: 8
ndim: 3
cosmological:  false
-------------------------------------------------------
amr:           true
level of uniform grid: 5 --> cellsize(s): 468.75 [pc]
-------------------------------------------------------
hydro:         true
hydro-variables:  8  --> (:rho, :vx, :vy, :vz, :p, :scalar_00, :scalar_01, :scalar_02)
hydro-descriptor: (:density, :velocity_x, :velocity_y, :velocity_z, :pressure, :scalar_00, :scalar_01, :scalar_02)
γ: 1.4
gravity:       false
particles:     false
-------------------------------------------------------
rt:            true
rt-variables: 12
nIons: 3
nGroups: 3
iIons: 6
photon group energies [eV]: [18.85, 35.08, 65.67]
-------------------------------------------------------
clumps:           false
-------------------------------------------------------
namelist-file: ("&COOLING_PARAMS", "&AMR_PARAMS", "&OUTPUT_PARAMS", "&BOUNDARY_PARAMS", "&RT_PARAMS", "&RT_GROUPS\t\t\t! Blackbody at T=1d5 Kelvin", "&UNITS_PARAMS", "&RUN_PARAMS", "! the Sedov fixture the boundaries here are NOT periodic (see &BOUNDARY_PARAMS), so plain", "&HYDRO_PARAMS", "! Run:  mpirun -np 8 <build>/bin/ramses3d_rt stromgren3d.nml > run.log 2>&1", "&INIT_PARAMS", "&REFINE_PARAMS")
-------------------------------------------------------
timer-file:       true
compilation-file: true
makefile:         true
patchfile:        true
=======================================================
Processing files: 100%|██████████████████████████████████████████████████| Time: 0:00:00 (66.58 ms/it)
✓ File processing complete! Combining results...

Takeaway: getinfo → getrt → projection → show_map already reveals the ionized sphere. Everything below varies what we put through this same pipeline.

What is in the RT object?

getinfo reported the RT block; programmatically the available photon fields are listed in info.rt_variable_list, and the leaf-cell table is rt.data (use viewfields(rt) to browse the object's fields).

println("RT run? ", info.rt, "    nvarrt = ", info.nvarrt, "  (= 4 × nGroups)")
info.rt_variable_list      # the per-group symbols Mera exposes: :Np1, :Fx1, :Fy1, :Fz1, …

RT run? true    nvarrt = 12  (= 4 × nGroups)

12-element Vector{Symbol}:
 :Np1
 :Fx1
 :Fy1
 :Fz1
 :Np2
 :Fx2
 :Fy2
 :Fz2
 :Np3
 :Fx3
 :Fy3
 :Fz3

Variables with `getvar`, the simplest form

getvar(object, :symbol) returns one array (per leaf cell). That is the whole idea; later we pass a vector of symbols to get several at once, and a unit symbol to convert.

Np1 = getvar(rt, :Np1)                 # one photon group, code units
(Np1_min = minimum(Np1), Np1_max = maximum(Np1))

(Np1_min = 1.9695717303063266e-49, Np1_max = 0.0010425690408447943)

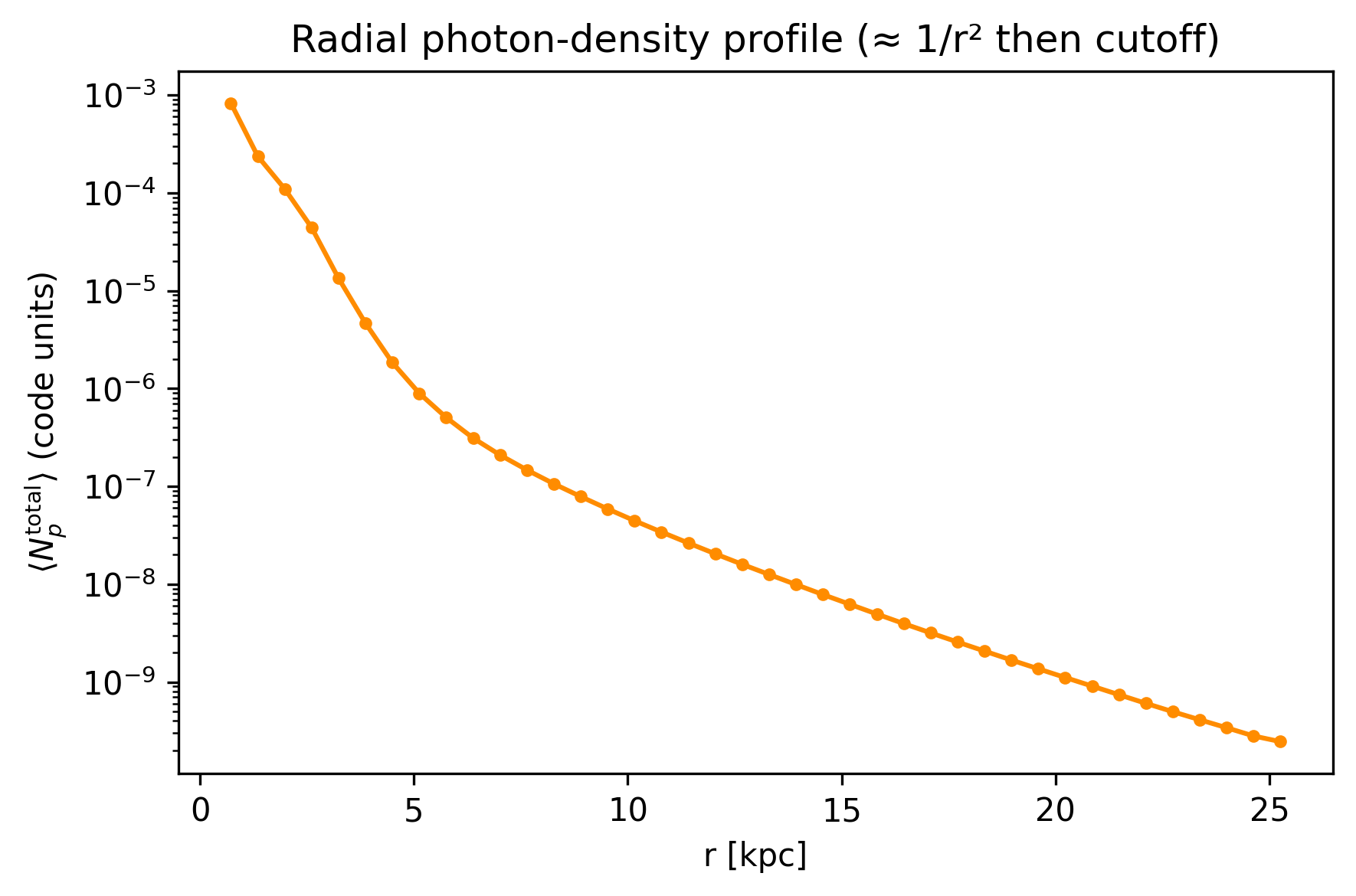

A first physics hook: radial fall-off

Binning the total photon density by distance from the (corner) source shows the expected geometric ~1/r² dilution, then a steeper drop once absorption sets in near the front. We define a tiny object-agnostic helper radial_mean here and reuse it later on the gas data. This also introduces the getvar(obj, :var, :unit) conversion form (radius in kpc).

"Radial mean of q(r) in nbins (plain arrays; empty bins → NaN). Reused on rt and gas."
function radial_mean(r, q; nbins=40)
    edges = range(minimum(r), maximum(r), length=nbins+1)
    r_centers = [(edges[i] + edges[i+1]) / 2 for i in 1:nbins]
    means = [ (m = (r .>= edges[i]) .& (r .< edges[i+1]); any(m) ? sum(q[m]) / count(m) : NaN) for i in 1:nbins ]
    return r_centers, means
end

r = getvar(rt, :r_sphere, :kpc, center=[0.0, 0.0, 0.0])     # source at the corner
rprof, npprof = radial_mean(r, getvar(rt, :Np_total))

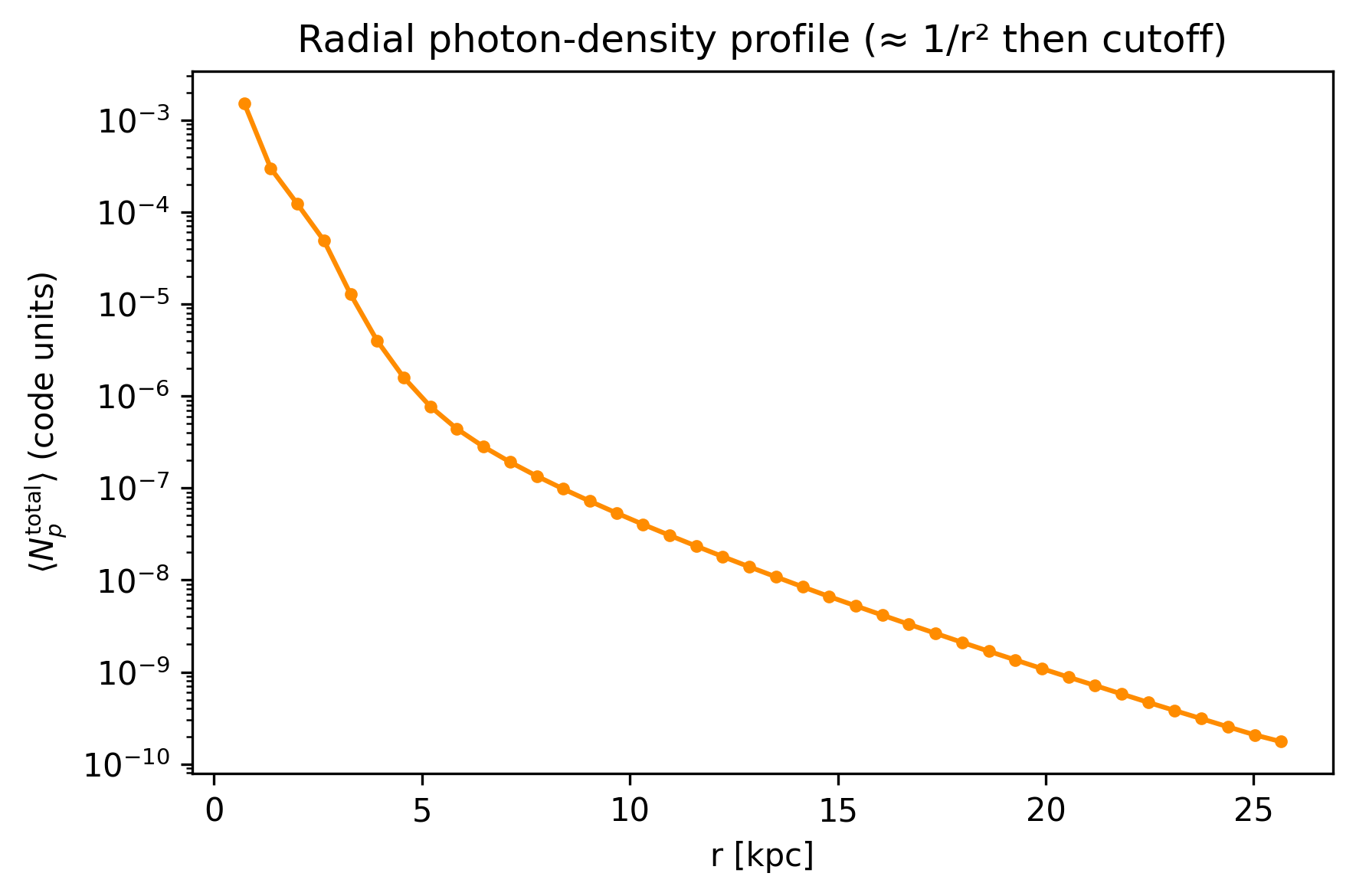

figure(figsize=(6,4)); semilogy(rprof, npprof, "-o", ms=3, color="darkorange")
xlabel("r [kpc]"); ylabel(L"$\langle N_p^{\rm total}\rangle$ (code units)")
title("Radial photon-density profile (≈ 1/r² then cutoff)"); tight_layout();

[Mera] Hint: getvar(:r_sphere) has no `center`: it is measured about the box CORNER.
             Pass center=:bc, or center=[x, y, z] with center_unit. This is a separate
             argument from the `center` that places a region; give both the same origin.
             (shown once per session; verbose(false) silences Mera's messages)

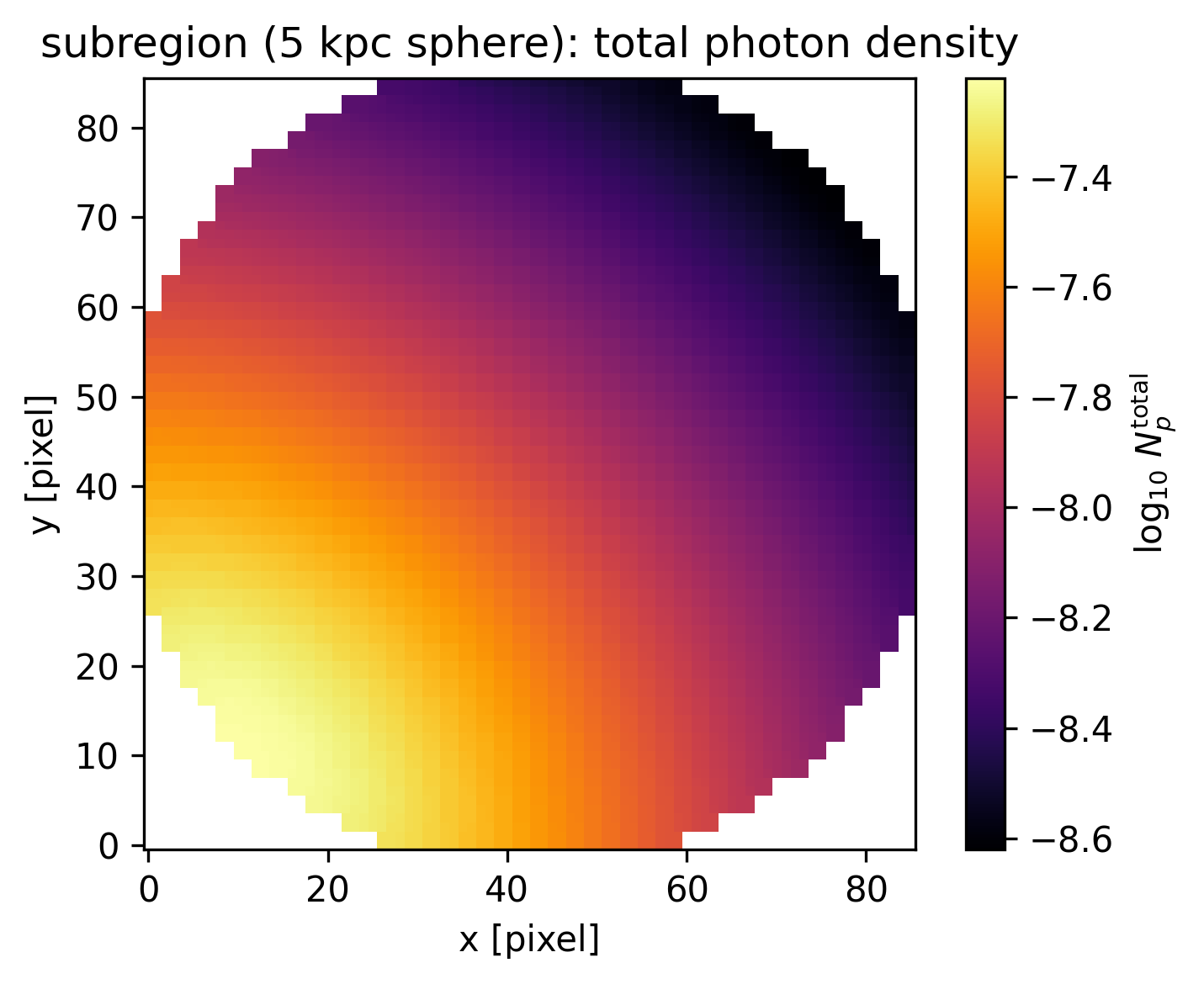

Region selection

subregion and shellregion work on an RtDataType just like on hydro, handy for zooms and shells. Note the two centre conventions used here: [:bc] = box centre (7.5 kpc), while the source sits at the corner [0,0,0] (used for the radial profiles).

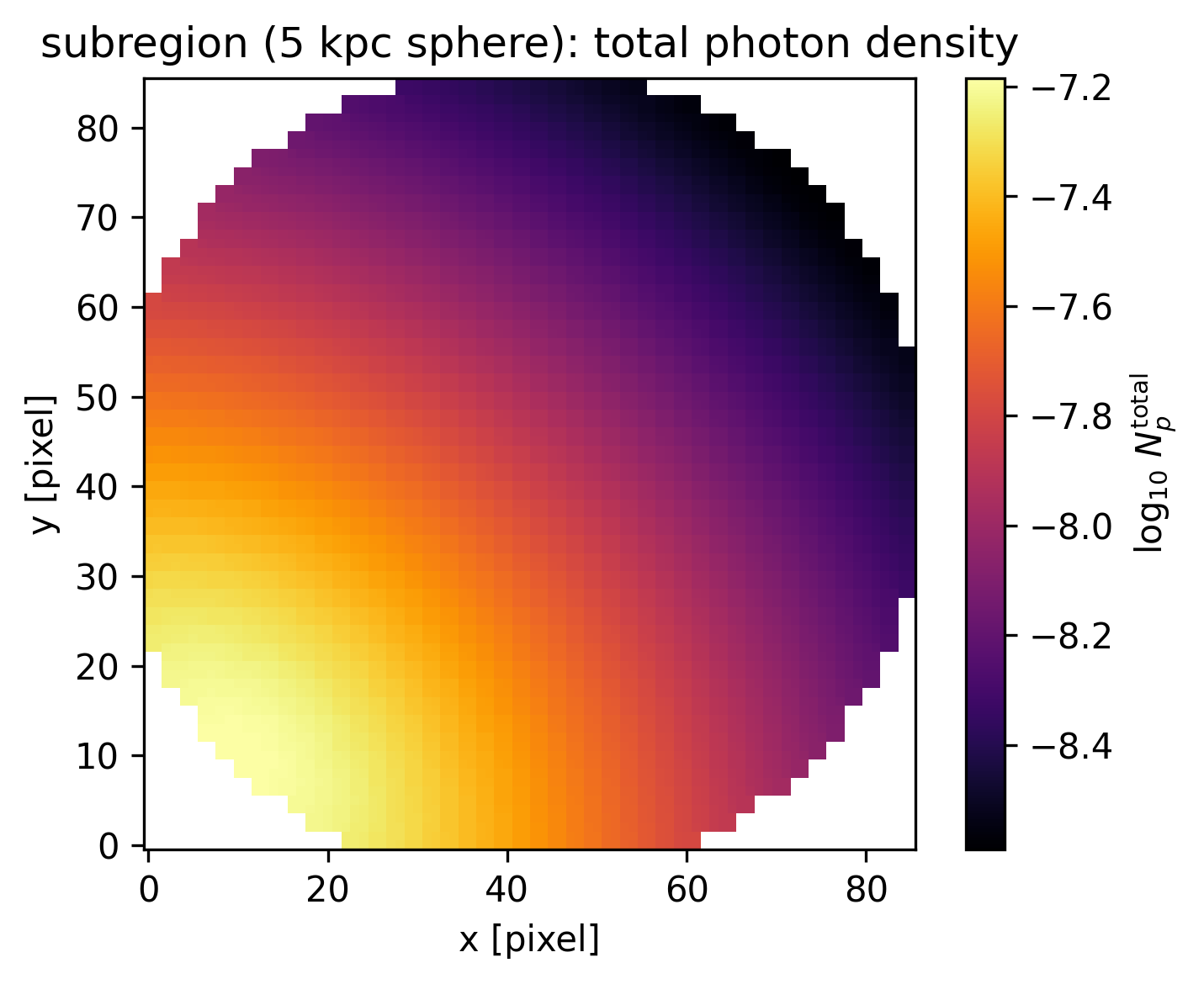

sub   = subregion(rt,  :sphere, radius=5.0,        center=[:bc], range_unit=:kpc, verbose=false)
shell = shellregion(rt, :sphere, radius=[3.0, 6.0], center=[:bc], range_unit=:kpc, verbose=false)
@show (full_cells = length(rt.data), sphere_cells = length(sub.data), shell_cells = length(shell.data))

# payoff: the selection is itself an RtDataType, project the 5 kpc sphere
psub = projection(sub, :Np_total, verbose=false, show_progress=false)
show_map(psub.maps[:Np_total]; logscale=true, clabel=L"$\log_{10}\,N_p^{\rm total}$",
         ttl="subregion (5 kpc sphere): total photon density")

(full_cells = length(rt.data), sphere_cells = length(sub.data), shell_cells = length(shell.data)) = (full_cells = 32768, sphere_cells = 6176, shell_cells = 8864)

The projection model (once)

A projection collapses the 3D AMR field onto a 2D pixel grid. Two modes:

mode	meaning	use
`:standard` (default)	volume-weighted average along the line of sight	maps of intensive fields (xHII, reduced flux)
`:sum`	volume-weighted sum per pixel, `Σ q·V_cell`	totals (the whole map sums to the box total)

RT defaults mass-weighting → volume-weighting (RT carries no mass). A thin zrange turns a projection into a slice. Note: :sum carries a cell-volume factor, so it is proportional to a column total, not the path-length integral ∫q dz; RT fields have no :sd (surface-density) analogue.

Photon flux, the vectorial field (M1)

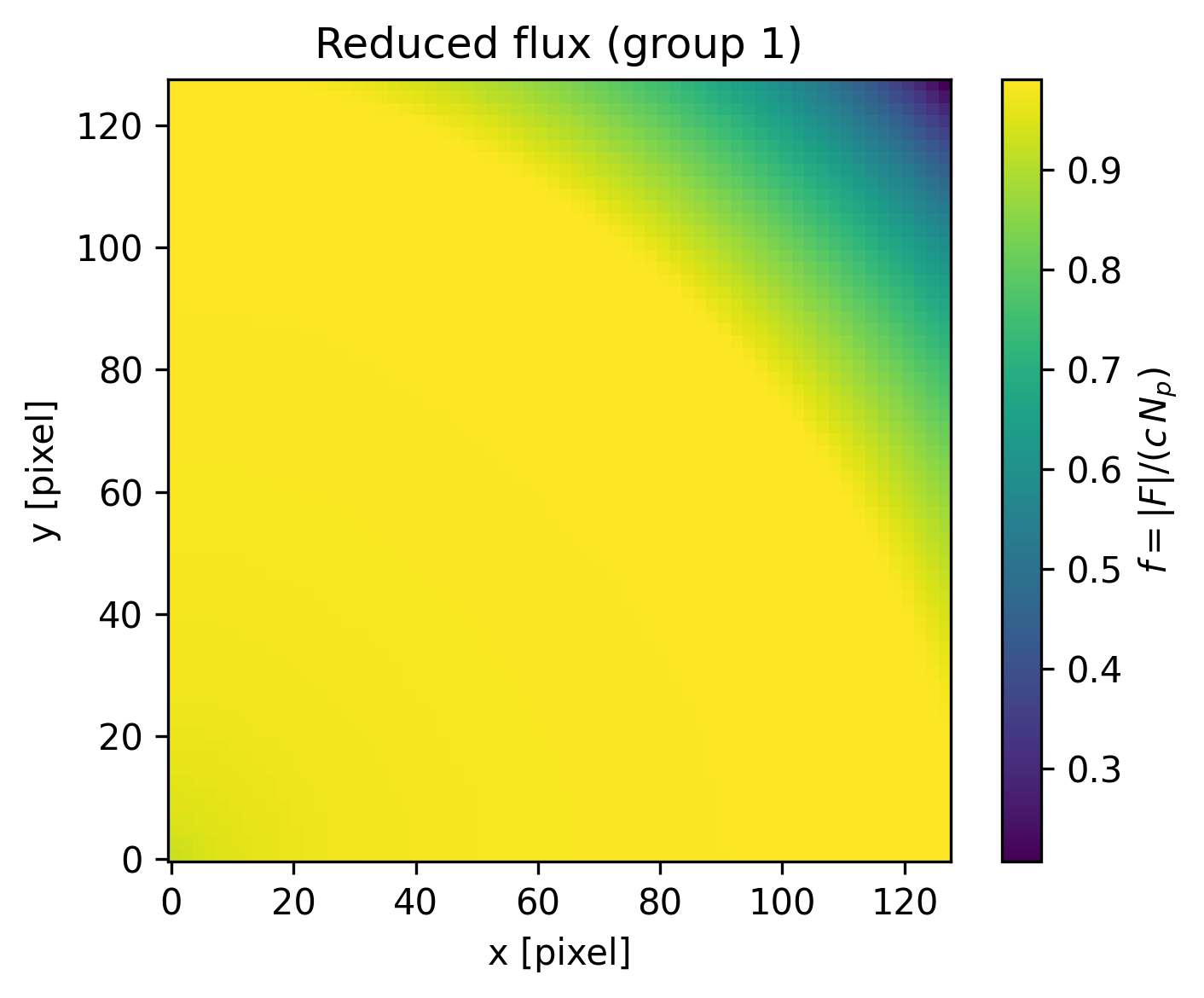

RT is vectorial: each group carries a flux F = (Fx, Fy, Fz). The reduced flux

\[f = \frac{|\mathbf F|}{c\,N_p} \in [0,1]\]

measures how beamed the radiation is in the M1 closure: f → 1 is a free-streaming radial beam, f → 0 is an isotropic field. Here we also meet the one-pass multi-variable form projection(rt, [:Np1, :Fx1, :Fy1]), which returns all three maps in a single call, and overlay the flux direction as arrows on the photon-density map.

@show maximum(getvar(rt, :reducedflux1))      # bounded to [0,1]; ~0.99 along the rays
@show maximum(getvar(rt, :Fmag1))             # |F| of group 1 (code units)

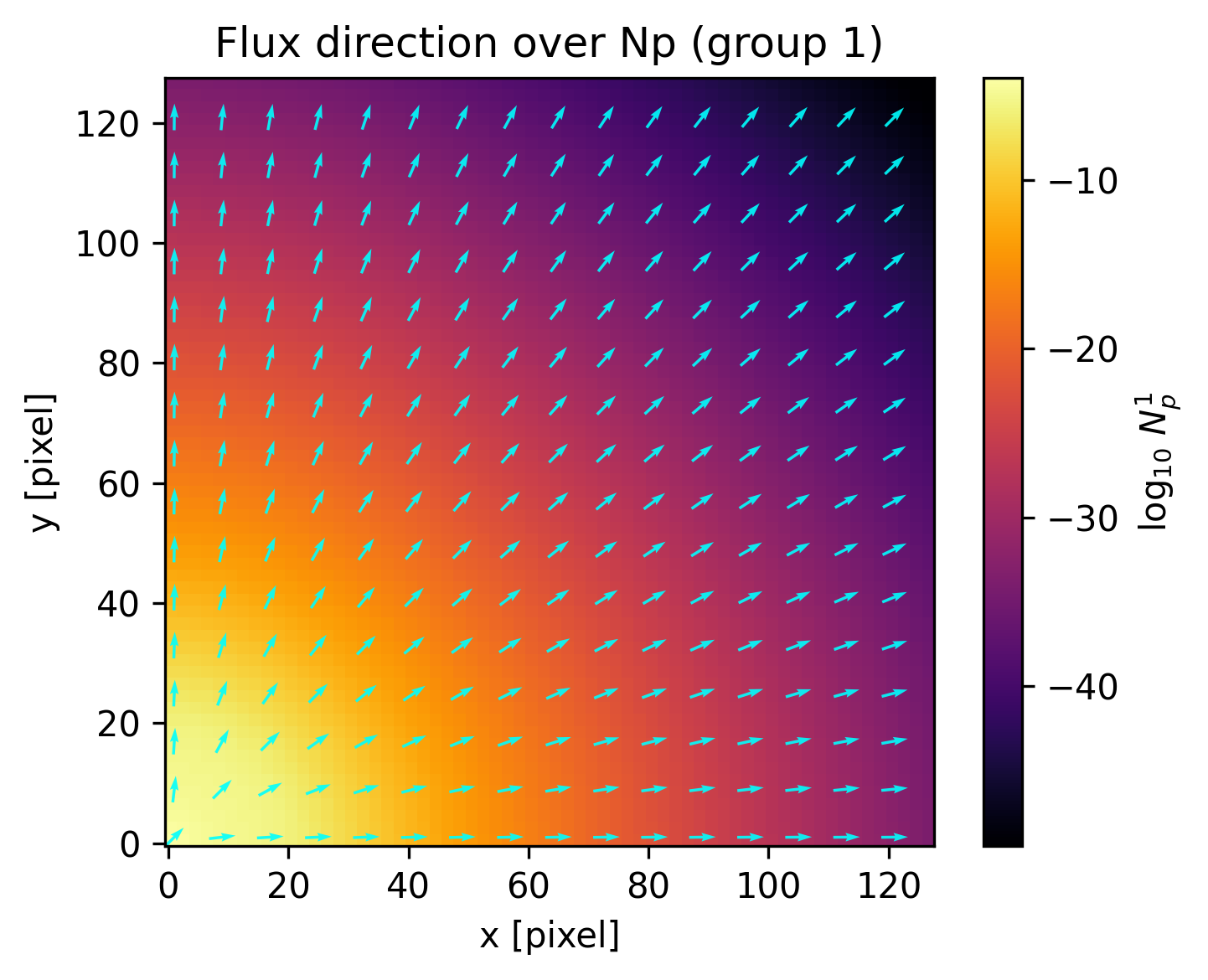

pf = projection(rt, [:Np1, :Fx1, :Fy1], verbose=false, show_progress=false)   # 3 maps, 1 pass
fx = permutedims(pf.maps[:Fx1]); fy = permutedims(pf.maps[:Fy1])
mag = sqrt.(fx.^2 .+ fy.^2) .+ 1e-50
u = fx ./ mag; v = fy ./ mag                  # unit vectors (direction only)
ny, nx = size(u); s = 8; xs = collect(1:s:nx); ys = collect(1:s:ny)

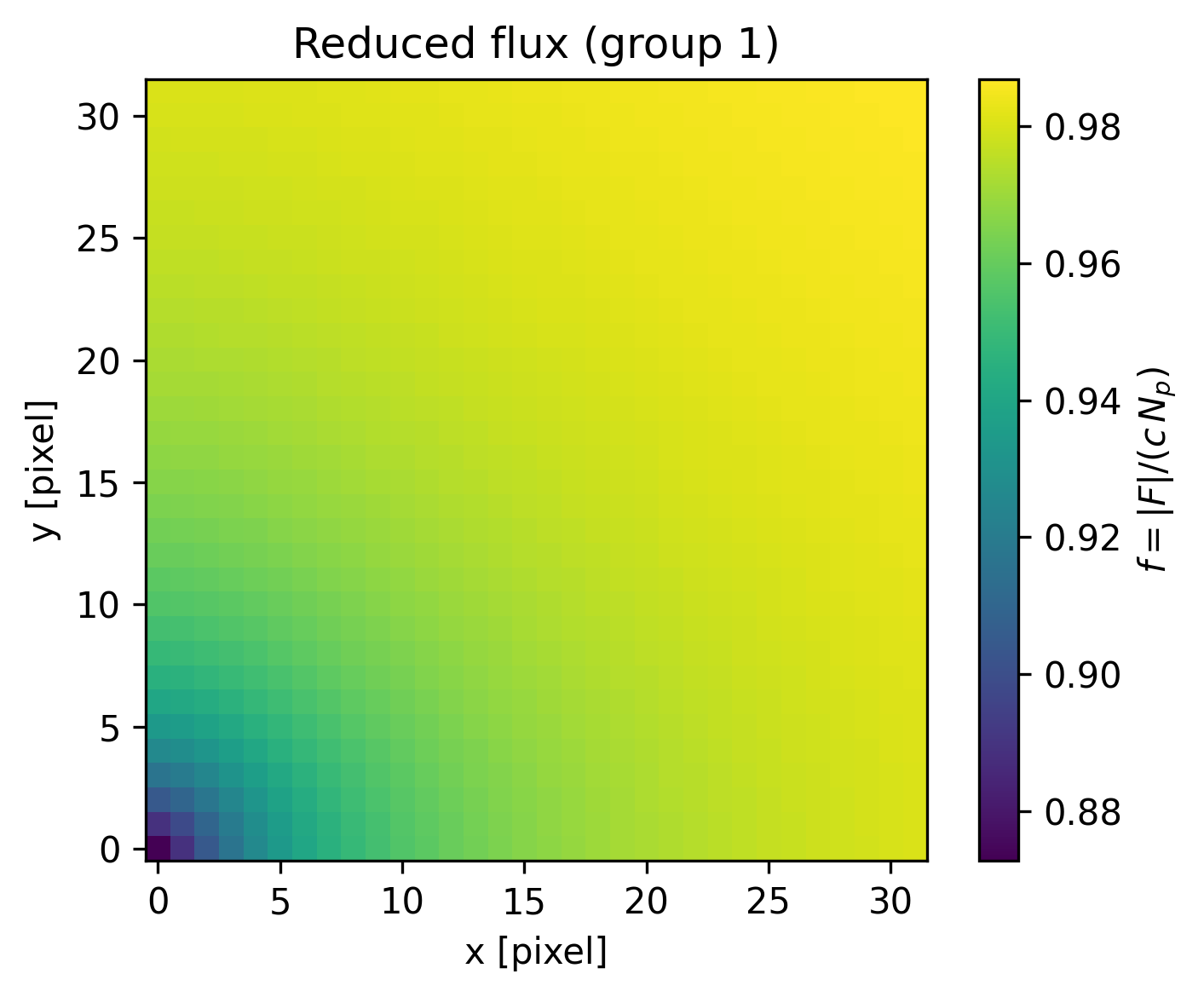

prf = projection(rt, :reducedflux1, verbose=false, show_progress=false)
show_map(prf.maps[:reducedflux1]; cmap="viridis", clabel=L"$f=|F|/(c\,N_p)$", ttl="Reduced flux (group 1)")

show_map(pf.maps[:Np1]; logscale=true, clabel=L"$\log_{10}\,N_p^{1}$", ttl="Flux direction over Np (group 1)")
quiver(xs, ys, u[ys, xs], v[ys, xs], color="cyan", pivot="mid", alpha=0.9);

maximum(getvar(rt, :reducedflux1)) = 0.9888163855508687
maximum(getvar(rt, :Fmag1)) = 0.0001338306154295702

Photon groups & energy bands

Why Np1, Np2, Np3? RAMSES-RT splits the spectrum into nGroups energy bands set at the ionization thresholds of H and He, so each band ionizes a species:

group	band [eV]	ionizes (threshold)
1	13.6, 24.59	H I → H II (13.6 eV)
2	24.59, 54.42	He I → He II (24.59 eV)
3	> 54.42	He II → He III (54.42 eV)

These are the generic RAMSES-RT band definitions. This run is pure hydrogen (X=1, Y=0), so all helium cross-sections are zero, groups 2 and 3 here simply supply harder hydrogen-ionizing photons (smaller H I cross-sections), and only the 13.6 eV H I threshold is physically active.

The band edges (groupL0/L1) and the SED-averaged mean energy per band (group_egy) live in info.descriptor.rt / info.descriptor.rtPhotonGroups. Resolving bands lets the code follow spectral hardening, higher-energy photons have smaller cross-sections ≈ (ν/ν₀)⁻³, so they penetrate deeper and raise the field's mean energy outward. The bar chart is the integrated photon budget per band (not a spatial map).

This completes the RT-native tour, raw fields, geometry, regions, projection modes, flux vectors and spectral bands, all through the same getvar / projection pipeline.

@show info.descriptor.rt[:group_egy]                       # mean photon energy per band [eV]
ng = info.nvarrt ÷ 4
totals = [sum(getvar(rt, Symbol("Np", g))) for g in 1:ng]
L0 = info.descriptor.rtPhotonGroups[:L0_eV]; L1 = info.descriptor.rtPhotonGroups[:L1_eV]
bands = ["G$g\n$(round(L0[g],digits=1))–$(L1[g]==0 ? "∞" : string(round(L1[g],digits=1))) eV" for g in 1:ng]

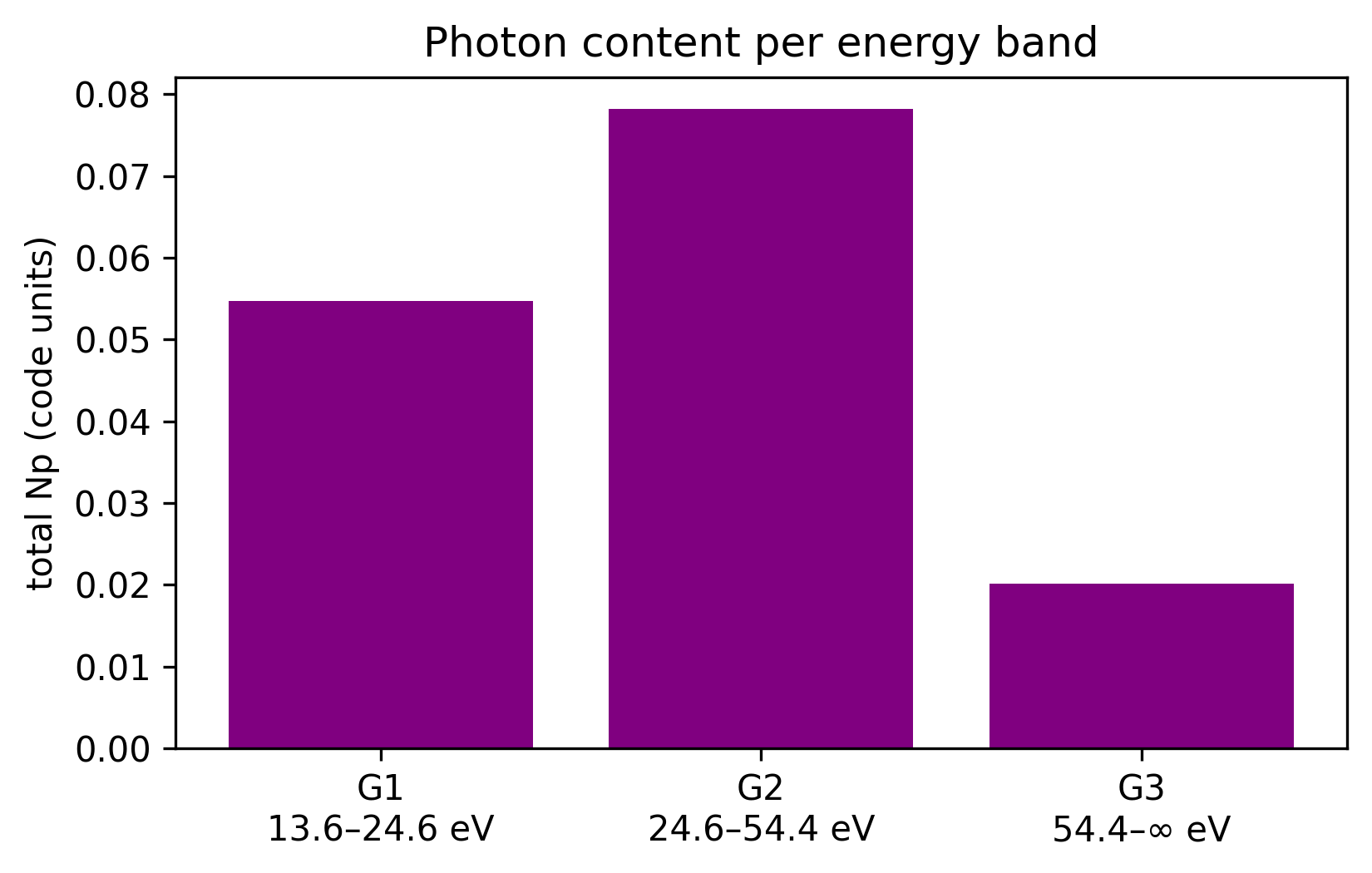

figure(figsize=(5.6,3.6)); bar(1:ng, totals, color="purple")
ylabel("total Np (code units)"); xticks(1:ng, bands)
title("Photon content per energy band"); tight_layout();

info.descriptor.rt[:group_egy] = [18.85, 35.08, 65.67]

The hydro to RT bridge

This is the conceptual pivot. The photon transport lives in rt; the ionization state it produces, xHII, temperature, electron density, lives in the hydro data as passive scalars. Load it with gethydro; Mera locates the ionization fractions automatically via the RT descriptor index iIons, so you ask for them by name (:xHII, …). For this pure-hydrogen run (X=1, Y=0) the free-electron density equals the HII density (n_e = n_HII).

gas = gethydro(info, verbose=false, show_progress=false)

HydroDataType(Table with 32768 rows, 11 columns:
Columns:
#   colname    type
──────────────────────
1   cx         Int64
2   cy         Int64
3   cz         Int64
4   rho        Float64
5   vx         Float64
6   vy         Float64
7   vz         Float64
8   p          Float64
9   scalar_00  Float64
10  scalar_01  Float64
11  scalar_02  Float64, InfoType(3, "/Volumes/FASTStorage/Simulations/Mera-Tests/RAMSES-PUBLIC/stromgren3d", FileNamesType("/Volumes/FASTStorage/Simulations/Mera-Tests/RAMSES-PUBLIC/stromgren3d/output_00003", "/Volumes/FASTStorage/Simulations/Mera-Tests/RAMSES-PUBLIC/stromgren3d/output_00003/info_00003.txt", "/Volumes/FASTStorage/Simulations/Mera-Tests/RAMSES-PUBLIC/stromgren3d/output_00003/amr_00003.", "/Volumes/FASTStorage/Simulations/Mera-Tests/RAMSES-PUBLIC/stromgren3d/output_00003/hydro_00003.", "/Volumes/FASTStorage/Simulations/Mera-Tests/RAMSES-PUBLIC/stromgren3d/output_00003/hydro_file_descriptor.txt", "/Volumes/FASTStorage/Simulations/Mera-Tests/RAMSES-PUBLIC/stromgren3d/output_00003/grav_00003.", "/Volumes/FASTStorage/Simulations/Mera-Tests/RAMSES-PUBLIC/stromgren3d/output_00003/part_00003.", "/Volumes/FASTStorage/Simulations/Mera-Tests/RAMSES-PUBLIC/stromgren3d/output_00003/part_file_descriptor.txt", "/Volumes/FASTStorage/Simulations/Mera-Tests/RAMSES-PUBLIC/stromgren3d/output_00003/rt_00003.", "/Volumes/FASTStorage/Simulations/Mera-Tests/RAMSES-PUBLIC/stromgren3d/output_00003/rt_file_descriptor.txt", "/Volumes/FASTStorage/Simulations/Mera-Tests/RAMSES-PUBLIC/stromgren3d/output_00003/info_rt_00003.txt", "/Volumes/FASTStorage/Simulations/Mera-Tests/RAMSES-PUBLIC/stromgren3d/output_00003/clump_00003.", "/Volumes/FASTStorage/Simulations/Mera-Tests/RAMSES-PUBLIC/stromgren3d/output_00003/sink_00003.csv", "/Volumes/FASTStorage/Simulations/Mera-Tests/RAMSES-PUBLIC/stromgren3d/output_00003/timer_00003.txt", "/Volumes/FASTStorage/Simulations/Mera-Tests/RAMSES-PUBLIC/stromgren3d/output_00003/header_00003.txt", "/Volumes/FASTStorage/Simulations/Mera-Tests/RAMSES-PUBLIC/stromgren3d/output_00003/namelist.txt", "/Volumes/FASTStorage/Simulations/Mera-Tests/RAMSES-PUBLIC/stromgren3d/output_00003/compilation.txt", "/Volumes/FASTStorage/Simulations/Mera-Tests/RAMSES-PUBLIC/stromgren3d/output_00003/makefile.txt", "/Volumes/FASTStorage/Simulations/Mera-Tests/RAMSES-PUBLIC/stromgren3d/output_00003/patches.txt"), "RAMSES", Dates.DateTime("2026-08-20T16:57:42.963"), Dates.DateTime("2026-08-20T16:57:42.963"), 8, 3, 5, 5, 15.0, 30.006753312671, 1.0, 1.0, 1.0, 0.0, 0.0, 0.045, 3.08568025e21, 1.66e-24, 4.877090903692205e40, 9.77813951206781e7, 3.1556926e13, 1.4, true, 8, 5, 12, [:rho, :vx, :vy, :vz, :p, :scalar_00, :scalar_01, :scalar_02], [:epot, :ax, :ay, :az], [:vx, :vy, :vz, :mass, :birth], [:Np1, :Fx1, :Fy1, :Fz1, :Np2, :Fx2, :Fy2, :Fz2, :Np3, :Fx3, :Fy3, :Fz3], Symbol[], Symbol[], DescriptorType(1, [:density, :velocity_x, :velocity_y, :velocity_z, :pressure, :scalar_00, :scalar_01, :scalar_02], ["d", "d", "d", "d", "d", "d", "d", "d"], false, true, 0, [:vx, :vy, :vz, :mass, :birth], String[], false, false, [:epot, :ax, :ay, :az], false, false, 1, Dict{Any, Any}(:g_star => 1.6, :T2_star => 0.0, :nRTvar => 12, :nIons => 3, :group_egy => [18.85, 35.08, 65.67], :rt_c_frac => 0.01, :unit_pf => 9.77813951206781e7, :n_star => 0.1, :X_fraction => 1.0, :unit_np => 1.0…), Dict{Any, Any}(:L0_eV => [13.6, 24.59, 54.42], 2 => Dict{Symbol, Any}(:cse_cm2 => [5.04e-19, 0.0, 0.0], :egy_eV => 35.08, :csn_cm2 => [5.69e-19, 0.0, 0.0]), :spec2group => [1, 2, 3], :L1_eV => [24.59, 54.42, 0.0], 3 => Dict{Symbol, Any}(:cse_cm2 => [7.46e-20, 0.0, 0.0], :egy_eV => 65.67, :csn_cm2 => [7.89e-20, 0.0, 0.0]), 1 => Dict{Symbol, Any}(:cse_cm2 => [2.78e-18, 0.0, 0.0], :egy_eV => 18.85, :csn_cm2 => [3.0e-18, 0.0, 0.0])), false, true, Symbol[], false, false, Symbol[], false, false), true, false, false, true, false, false, true, Dict{Any, Any}("&COOLING_PARAMS" => Dict{Any, Any}("cooling" => ".true."), "&AMR_PARAMS" => Dict{Any, Any}("levelmax" => "5", "ngridmax" => "50000", "boxlen" => "15.\t\t\t!  1 kpc", "levelmin" => "5", "nexpand" => "1"), "&OUTPUT_PARAMS" => Dict{Any, Any}("noutput" => "6", "tout" => "10.,30.,60.,120.,250.,500."), "&BOUNDARY_PARAMS" => Dict{Any, Any}("nboundary" => "6", "jbound_min" => "0, 0, -1,  1, -1, -1", "kbound_max" => "0, 0,  0,  0, -1,  1", "bound_type" => "1, 2,  1,  2,  1,  2", "ibound_max" => "-1, 1,  1,  1,  1,  1", "ibound_min" => "-1, 1, -1, -1, -1, -1", "jbound_max" => "0, 0, -1,  1,  1,  1", "kbound_min" => "0, 0,  0,  0, -1,  1"), "&RT_PARAMS" => Dict{Any, Any}("rt_source_type" => "3*'point'", "&RT_GROUPS\t\t\t! Blackbody at T" => "1d5 Kelvin", "rt_flux_scheme" => "'glf'", "rt_w_source" => "3*0", "rt_c_fraction" => "0.01", "rt_v_source" => "3*0", "rt_src_z_center" => "3*0.", "rt_src_length_y" => "3*1.0", "rt_src_length_z" => "3*1.0", "rt_courant_factor" => "0.8"…), "&RT_GROUPS\t\t\t! Blackbody at T=1d5 Kelvin" => Dict{Any, Any}("group_csn(2,:)" => "5.69d-19, 0.,0.   ! pck 2-> HI, HeI, HeII", "group_egy" => "18.85, 35.079, 65.666", "group_cse(2,:)" => "5.04d-19, 0.,0.   ! pck 2-> HI, HeI, HeII", "spec2group" => "1,2,3             ! HI, HeI, HeII -> pck", "group_cse(1,:)" => "2.78d-18, 0.,0.   ! pck 1-> HI, HeI, HeII", "group_csn(3,:)" => "7.89d-20, 0.,0.   ! pck 3-> HI, HeI, HeII", "group_csn(1,:)" => "3.00d-18, 0.,0.   ! pck 1-> HI, HeI, HeII", "group_cse(3,:)" => "7.46d-20, 0.,0.   ! pck 3-> HI, HeI, HeII"), "&UNITS_PARAMS" => Dict{Any, Any}("units_density" => "1.66d-24", "units_time" => "3.1556926d13", "units_length" => "3.08568025d21"), "&RUN_PARAMS" => Dict{Any, Any}("static_gas" => ".true.", "nsubcycle" => "10*1", "rt" => ".true.", "verbose" => ".false.", "nremap" => "0", "nrestart" => "0", "hydro" => ".true."), "! the Sedov fixture the boundaries here are NOT periodic (see &BOUNDARY_PARAMS), so plain" => Dict{Any, Any}(), "&HYDRO_PARAMS" => Dict{Any, Any}("slope_type" => "2", "gamma" => "1.4", "courant_factor" => "0.8", "riemann" => "'hllc'", "scheme" => "'muscl'")…), false, true, Mera.FilesContentType(["#############################################################################", "# If you have problems with this makefile, contact Romain.Teyssier@gmail.com", "#############################################################################", "# Compilation time parameters", "", "# Do we want a debug build? 1=Yes, 0=No", "DEBUG = 0", "# Do we want to test coverage?", "GCOV = 0", "# Compiler flavor: GNU or INTEL"  …  "\t\$(FC) -O0 -c write_patch.f90 -o \$@", "%.o:%.F", "\t\$(F90) \$(FFLAGS_BASE) \$(FFLAGS_OPT) -c \$^ -o \$@ \$(LIBS_OBJ) \$(LIBS_OBJ_TURB)", "%.o:%.f90", "\t\$(F90) \$(FFLAGS_BASE) \$(FFLAGS_OPT) -c \$^ -o \$@ \$(LIBS_OBJ) \$(LIBS_OBJ_TURB)", "FORCE:", "#############################################################################", "clean:", "\trm -f *.o *.\$(MOD) *.i", "#############################################################################"], [" --------------------------------------------------------------------", "", "     minimum       average       maximum  standard dev        std/av       %   rmn   rmx  TIMER", "       0.018         0.019         0.023         0.002         0.086     0.5     2   1    coarse levels           ", "       0.005         0.008         0.009         0.001         0.156     0.2     1   2    particles               ", "       0.028         0.028         0.029         0.000         0.002     0.7     2   1    io                      ", "       2.637         3.312         3.422         0.255         0.077    78.7     1   5    radiative transfer      ", "       0.102         0.103         0.104         0.001         0.006     2.5     1   3    courant                 ", "       0.025         0.026         0.027         0.000         0.017     0.6     5   2    hydro - set unew        ", "       0.600         0.710         1.386         0.256         0.360    16.9     5   1    cooling                 ", "       4.208     100.0    TOTAL"], ["no patches", " "]), true, true, true, 0, ScalesType003(0.0010000008648732505, 1.0000008648732506, 1000.0008648732505, 1.0000008648732505e6, 3261.5665977832837, 2.0626498462588077e23, 3.08568025e16, 3.08568025e19, 3.08568025e21, 3.0856802499999998e22, 3.08568025e25, 1.0000025946219956e-9, 1.0000025946219957, 1.0000025946219956e9, 1.0000025946219955e18, 3.4695947530005516e10, 8.775594075372522e69, 2.9380065684892807e49, 2.93800656848928e58, 2.93800656848928e64, 2.93800656848928e67, 2.93800656848928e76, 0.02451901990607664, 0.02451901990607664, 1.66e-24, 24.51904111192109, 24.51904111192109, 0.005122229215, 0.0009999786422288134, 0.9999786422288134, 999978.6422288134, 3.1556926e13, 3.1556926e16, 2.4519083523665e7, 2.4519083523665e7, 8.166322132032091e12, 2.5694187983395264e10, 4.877090903692205e40, 977.813951206781, 977813.951206781, 9.77813951206781e7, 0.76, 4.663084755571995e56, 1.587159404469864e-8, 1.1495748770830704e8, 1.1495748770830704e8, 1.5125985224777243e8, 1.5125985224777243e8, 1.587159404469864e-8, 1.587159404469864e-8, 1.1495748770830704e8, 1.1495748770830704e8, 1.0, 1.0, 4.877090903692205e40, 4.877090903692205e33, 1.66e-24, 1.6600000000000001e-25, 1.380649e-16, 1.4715262056331354e63, 1.4715262056331354e70, 1.4715262056331354e63, 0.0004465963871398189, 446.5963871398189, 446.5963871398189, 446596.3871398189, 4.465963871398189e-8, 2.9104685816882255e68, 2.9104685816882255e65, 2.9104685816882256e62, 1.4776739520104065e43, 3.860172288428439e9, 3.860172288428439e9, 3.4036683604631933e-65, 9.999974053847366e-10, 0.76, 302.98265527339925, 5.0295120775384285e-22, 1.5519466084796796, 4.897466427974422e36, 4.897466427974422e39, 4.897466427974422e42, 3.08568025e21, 3.08568025e21, 3.0985716137458414e-6, 3.098571613745841e-8, 3.0985716137458415e-11, 1000.0435818210707, 9.56120123174617e15, 9.561201231746171e11, 956120.123174617, 1.5871594044698644e-8, 4.663084755571996e56, 1.5112015431838721e35, 1.004177802851038e-27, 3.08568025e21, 4.877090903692205e40, 3.1556926e13, 1.0, 1.0, 3.0985716137458414e-6, 9.77813951206781e7, 3.0985716137458414e-6, 3.0985716137458414e-6, 3.0985716137458414e-6, 9.56120123174617e15, 3.0985716137458414e-6, 9.77813951206781e7, 1.0, 1.5871594044698644e-8, 1.5871594044698644e-8, 4.663084755571996e56, 9.56120123174617e15, 4.663084755571995e56, 3.08568025e21, 4.877090903692205e40, 4.877090903692205e40, 3.1556926e13, 4.663084755571995e56, 4.663084755571995e56, 1.0, 1.5112015431838721e35, 1.004177802851038e-27, 3.0985716137458414e-6, 3.0985716137458414e-6, 3.0985716137458414e-6, 3.0985716137458414e-6, 3.0985716137458414e-6, 3.08568025e21, 3.08568025e21, 1.0, 1.0, 1.0, 57.29577951308232), GridInfoType(50000, 736, 3, 3, 3, 5, 6, 1371, [0.0, 32768.0, 65536.0, 98304.0, 131072.0, 163840.0, 196608.0, 229376.0, 262144.0], Bool[0, 0, 0, 0, 0, 0, 0, 0]), PartInfoType(0.0, 10.000213582273508, 0.0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0), CompilationInfoType(" 08/20/26-18:38:15", " /Applications/Xcode.app/Contents/Developer/usr/bin/make NGROUPS", " ", " ", " "), PhysicalUnitsType002(0.01495978707, 3.08567758128e24, 3.08567758128e21, 3.08567758128e18, 3.08567758128e15, 9.4607304725808e17, 1.9891e33, 1.9891e33, 5.9722e27, 1.89813e30, 6.96e10, 6.96e10, 9.1093837015e-28, 1.67262192369e-24, 1.67492749804e-24, 1.66e-24, 1.6605390666e-24, 6.02214076e23, 2.99792458e10, 6.6743e-8, 1.380649e-16, 1.380649e-16, 6.62607015e-27, 1.0545718176461565e-27, 5.670374419e-5, 6.6524587321e-25, 0.0072973525693, 8.314462618e7, 1.602176634e-12, 1.602176634e-9, 1.602176634e-6, 0.001602176634, 3.828e33, 3.828e33, 1.6605390666e-24, 86400.0, 3600.0, 60.0, 3.15576e16, 3.15576e13, 3.15576e7)), 5, 5, 15.0, [0.0, 1.0, 0.0, 1.0, 0.0, 1.0], [1, 2, 3, 4, 5, 6, 7, 8], Dict{Any, Any}(5 => :p, 4 => :vz, 6 => :scalar_00, 7 => :scalar_01, 2 => :vx, 8 => :scalar_02, 3 => :vy, 1 => :rho), 0.0, 0.0, ScalesType003(0.0010000008648732505, 1.0000008648732506, 1000.0008648732505, 1.0000008648732505e6, 3261.5665977832837, 2.0626498462588077e23, 3.08568025e16, 3.08568025e19, 3.08568025e21, 3.0856802499999998e22, 3.08568025e25, 1.0000025946219956e-9, 1.0000025946219957, 1.0000025946219956e9, 1.0000025946219955e18, 3.4695947530005516e10, 8.775594075372522e69, 2.9380065684892807e49, 2.93800656848928e58, 2.93800656848928e64, 2.93800656848928e67, 2.93800656848928e76, 0.02451901990607664, 0.02451901990607664, 1.66e-24, 24.51904111192109, 24.51904111192109, 0.005122229215, 0.0009999786422288134, 0.9999786422288134, 999978.6422288134, 3.1556926e13, 3.1556926e16, 2.4519083523665e7, 2.4519083523665e7, 8.166322132032091e12, 2.5694187983395264e10, 4.877090903692205e40, 977.813951206781, 977813.951206781, 9.77813951206781e7, 0.76, 4.663084755571995e56, 1.587159404469864e-8, 1.1495748770830704e8, 1.1495748770830704e8, 1.5125985224777243e8, 1.5125985224777243e8, 1.587159404469864e-8, 1.587159404469864e-8, 1.1495748770830704e8, 1.1495748770830704e8, 1.0, 1.0, 4.877090903692205e40, 4.877090903692205e33, 1.66e-24, 1.6600000000000001e-25, 1.380649e-16, 1.4715262056331354e63, 1.4715262056331354e70, 1.4715262056331354e63, 0.0004465963871398189, 446.5963871398189, 446.5963871398189, 446596.3871398189, 4.465963871398189e-8, 2.9104685816882255e68, 2.9104685816882255e65, 2.9104685816882256e62, 1.4776739520104065e43, 3.860172288428439e9, 3.860172288428439e9, 3.4036683604631933e-65, 9.999974053847366e-10, 0.76, 302.98265527339925, 5.0295120775384285e-22, 1.5519466084796796, 4.897466427974422e36, 4.897466427974422e39, 4.897466427974422e42, 3.08568025e21, 3.08568025e21, 3.0985716137458414e-6, 3.098571613745841e-8, 3.0985716137458415e-11, 1000.0435818210707, 9.56120123174617e15, 9.561201231746171e11, 956120.123174617, 1.5871594044698644e-8, 4.663084755571996e56, 1.5112015431838721e35, 1.004177802851038e-27, 3.08568025e21, 4.877090903692205e40, 3.1556926e13, 1.0, 1.0, 3.0985716137458414e-6, 9.77813951206781e7, 3.0985716137458414e-6, 3.0985716137458414e-6, 3.0985716137458414e-6, 9.56120123174617e15, 3.0985716137458414e-6, 9.77813951206781e7, 1.0, 1.5871594044698644e-8, 1.5871594044698644e-8, 4.663084755571996e56, 9.56120123174617e15, 4.663084755571995e56, 3.08568025e21, 4.877090903692205e40, 4.877090903692205e40, 3.1556926e13, 4.663084755571995e56, 4.663084755571995e56, 1.0, 1.5112015431838721e35, 1.004177802851038e-27, 3.0985716137458414e-6, 3.0985716137458414e-6, 3.0985716137458414e-6, 3.0985716137458414e-6, 3.0985716137458414e-6, 3.08568025e21, 3.08568025e21, 1.0, 1.0, 1.0, 57.29577951308232))

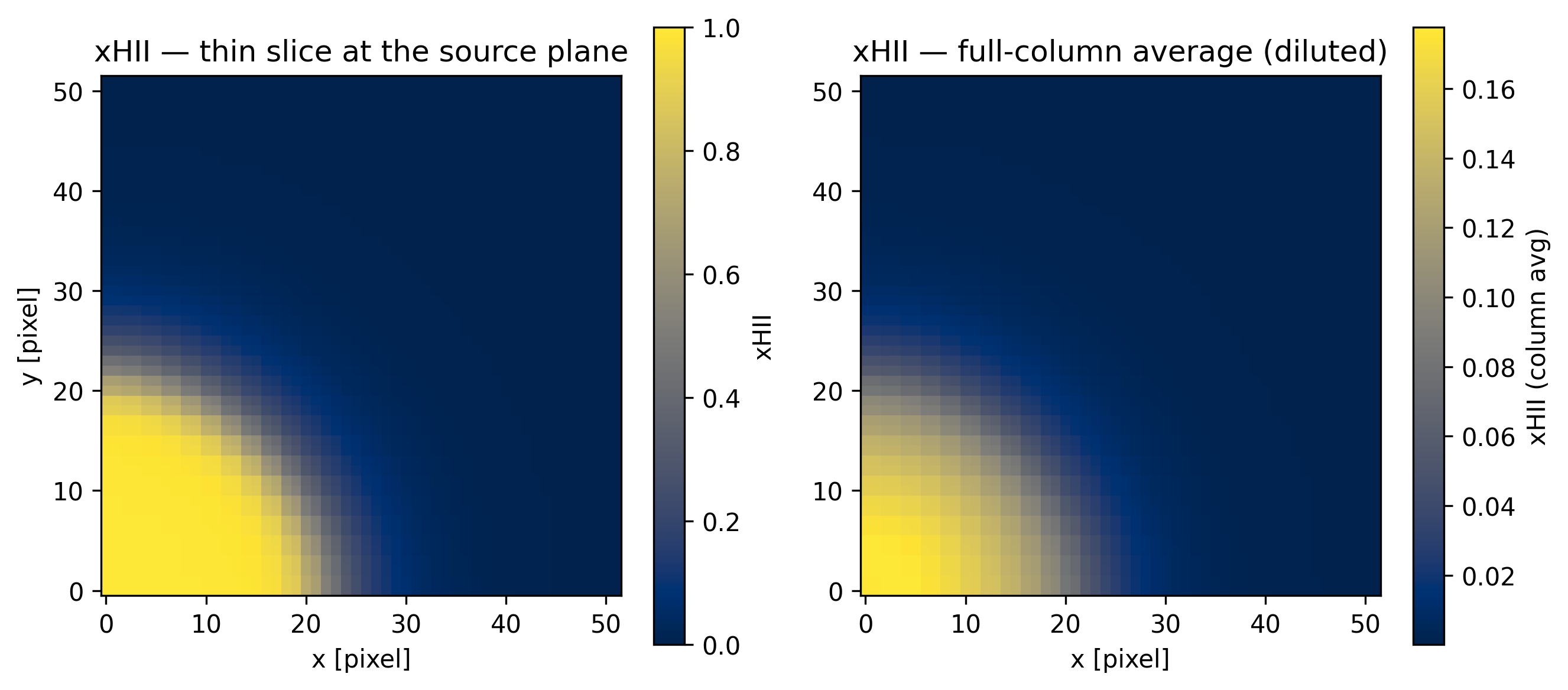

Ionization map: slice vs. column

:xHII is a hydro scalar (located via iIons). The source sits at the box corner [0,0,0], so we zoom on the ionized region (the Strömgren sphere is only ≈2.6 kpc in a 15 kpc box). A thin slice at the source plane shows the local sphere with a sharp ionization front (xHII: 0→1); the full-column average integrates the whole 15 kpc line of sight, mostly neutral gas, so it is far lower and smoother (note the separate colour scale). That is the slice-vs-column distinction: local structure vs. line-of-sight dilution.

# source at the corner [0,0,0]; zoom on the ionized region (~2.6 kpc sphere)
slc = projection(gas, :xHII, xrange=[0,6], yrange=[0,6], zrange=[0,1],
                 center=[0.,0.,0.], range_unit=:kpc, verbose=false, show_progress=false)
col = projection(gas, :xHII, xrange=[0,6], yrange=[0,6],
                 center=[0.,0.,0.], range_unit=:kpc, verbose=false, show_progress=false)
figure(figsize=(9,4))
subplot(1,2,1); imshow(permutedims(slc.maps[:xHII]), origin="lower", cmap="cividis", vmin=0, vmax=1)
title("xHII — thin slice at the source plane"); xlabel("x [pixel]"); ylabel("y [pixel]"); colorbar(label="xHII")
subplot(1,2,2); pc = imshow(permutedims(col.maps[:xHII]), origin="lower", cmap="cividis")
title("xHII — full-column average (diluted)"); xlabel("x [pixel]"); colorbar(pc, label="xHII (column avg)"); tight_layout();

Ionization-state number densities

From the hydrogen density and the ionization fractions, Mera derives :n_HII, :n_HI and the free-electron density :n_e (all in cm⁻³). Here we use the vector form to fetch all three in one call. (n_e = n_HII for pure H; with helium tracked, Y>0 adds n_HeII + 2 n_HeIII.)

d = getvar(gas, [:n_HII, :n_HI, :n_e])     # → Dict of arrays
(n_HII_max = maximum(d[:n_HII]), n_HI_max = maximum(d[:n_HI]), n_e_max = maximum(d[:n_e]))

(n_HII_max = 0.0009996398159210552, n_HI_max = 0.0009999979654335613, n_e_max = 0.0009996398159210552)

Mock recombination emission

A recombination-line image (e.g. Hα) is the line-of-sight integral of the emissivity j ∝ α(T)·nₑ·n_HII. getvar(gas, :em_recomb) returns the proxy n_HII² (valid here because the ionized gas is nearly isothermal); projecting it with mode=:sum gives a map proportional to the emission-measure column, the synthetic glow of the HII region.

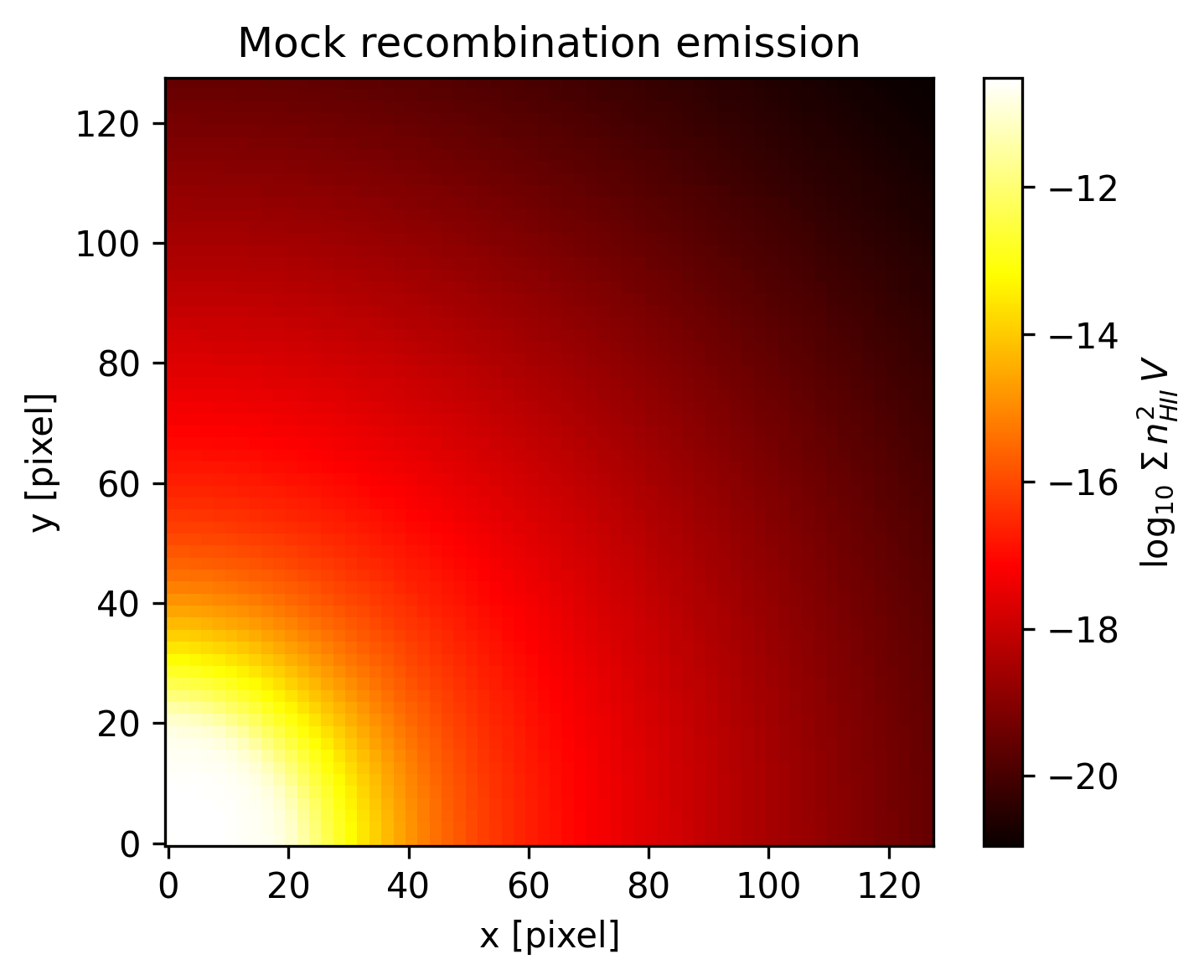

em = projection(gas, :em_recomb, mode=:sum, verbose=false, show_progress=false)
show_map(em.maps[:em_recomb]; logscale=true, cmap="hot",
         clabel=L"$\log_{10}\,\Sigma\,n_{HII}^2\,V$", ttl="Mock recombination emission")

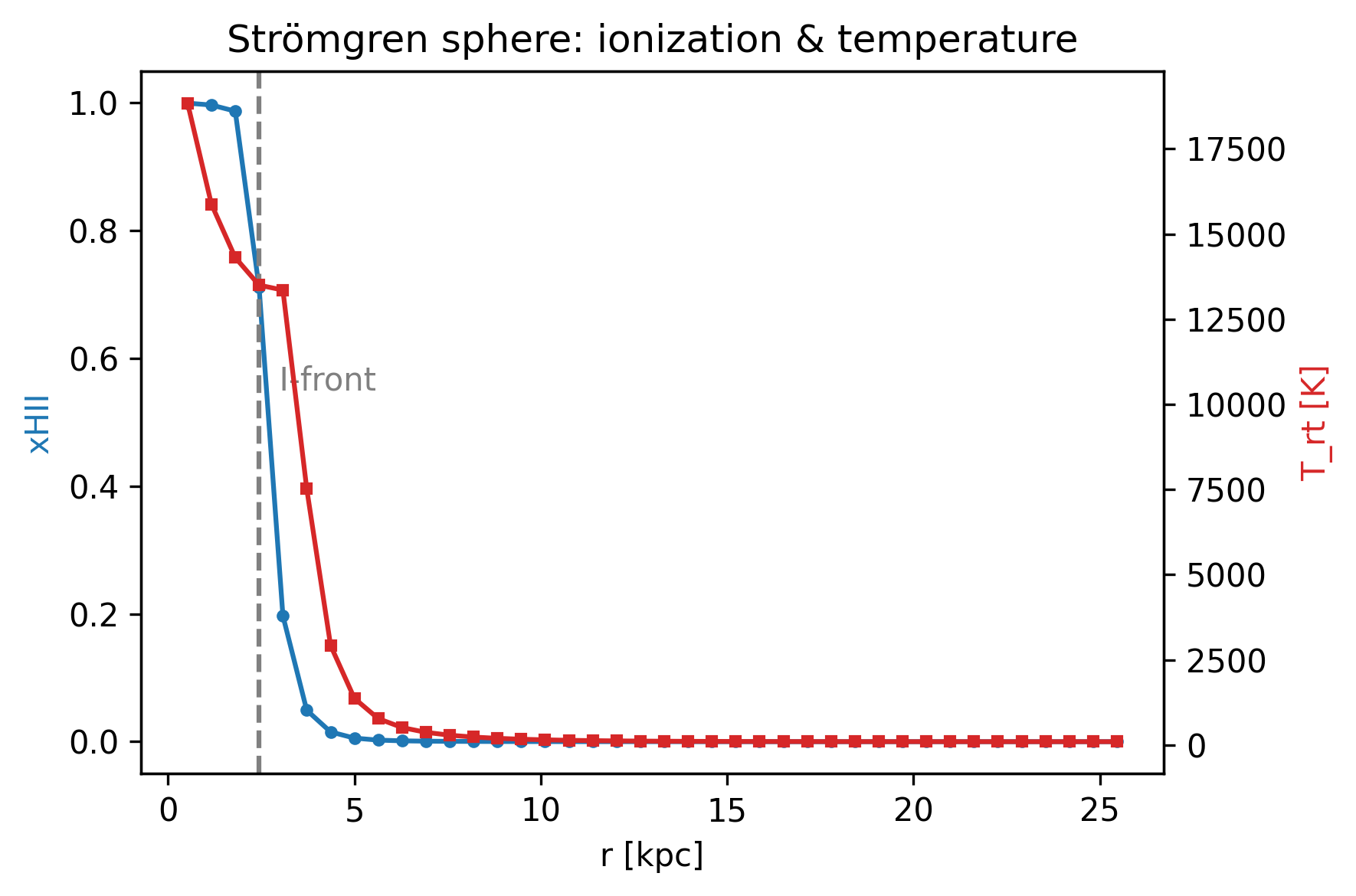

Strömgren climax: ionization & temperature profiles

The defining diagnostic, radially binned xHII(r) and T_rt(r) from the source (per-bin mean via radial_mean). The ionization front is the radius where xHII = 0.5; the temperature rises to ~10⁴ K inside (peaking at ~2×10⁴ K near the hard source) and falls outside. We compute r, xHII, T_rt here once and reuse them next.

r_kpc = getvar(gas, :r_sphere, :kpc, center=[0.0, 0.0, 0.0])
xh    = getvar(gas, :xHII)
Trt   = getvar(gas, :T_rt)
rc1, xhm = radial_mean(r_kpc, xh)
_,   Tm  = radial_mean(r_kpc, Trt)
ifront = rc1[something(findlast(x -> !isnan(x) && x > 0.5, xhm), 1)]

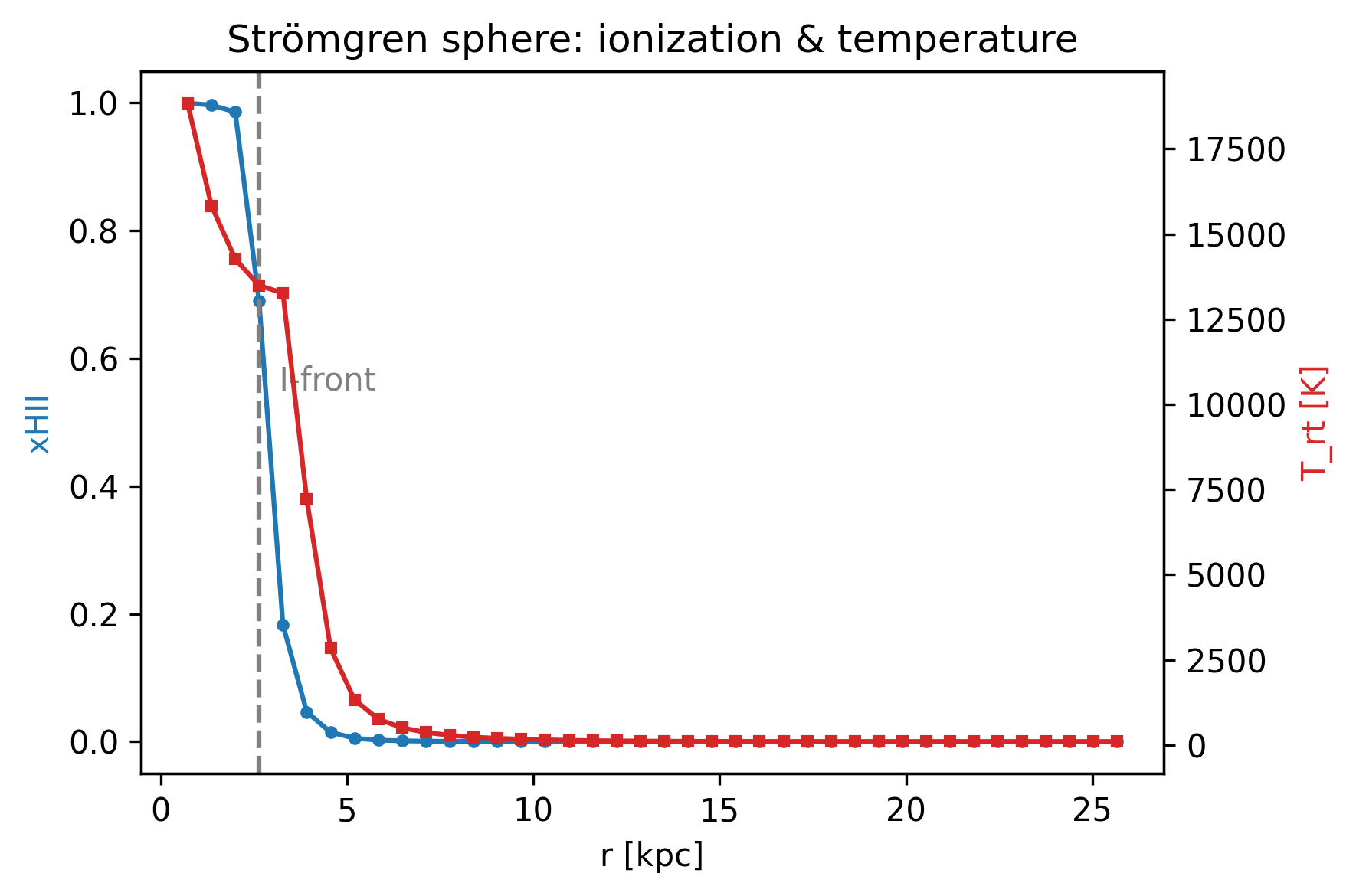

fig = figure(figsize=(6,4)); ax1 = gca()
ax1.plot(rc1, xhm, "-o", color="C0", ms=3); ax1.set_xlabel("r [kpc]"); ax1.set_ylabel("xHII", color="C0")
ax1.axvline(ifront, ls="--", color="gray"); ax1.text(ifront, 0.55, "  I-front", color="gray")
ax2 = ax1.twinx(); ax2.plot(rc1, Tm, "-s", color="C3", ms=3); ax2.set_ylabel("T_rt [K]", color="C3")
title("Strömgren sphere: ionization & temperature"); tight_layout();
@show round(ifront, digits=2)   # measured ionization-front radius [kpc]

round(ifront, digits = 2) = 2.61

2.61

Mean molecular weight μ and the temperature

The temperature follows T ∝ μ at fixed P/ρ, so the mean molecular weight matters. μ depends on the ionization state: for pure H, μ = 1/(1+xHII), running from 1.0 (neutral, since X=1 here) to 0.5 (fully ionized). Mera's plain :T (unit=:K) bakes in a constant μ ≈ 1/0.76 ≈ 1.32 (the fixed primordial default, independent of this run's X=1), so it over-estimates the ionized-gas temperature by μ_const/μ_local ≈ 1.32/0.5 ≈ 2.6× (matching the printed T_const/T_rt); :T_rt uses the local μ and recovers the physical temperature (~2×10⁴ K here). (μ also responds to metallicity via the :metallicity scalar when present; this test is metal-free.)

Because the medium is uniform and in photoionization equilibrium, T is single-valued in xHII the cells trace a 1D relation, so a scatter (coloured by radius) is the honest plot; a 2D density to temperature phase heatmap would collapse to a line here and only becomes informative in a multiphase ISM/galaxy run.

q = getvar(gas, [:mu, :T, :T_rt], [:standard, :K, :K])    # vector vars + per-var units
figure(figsize=(9,4))

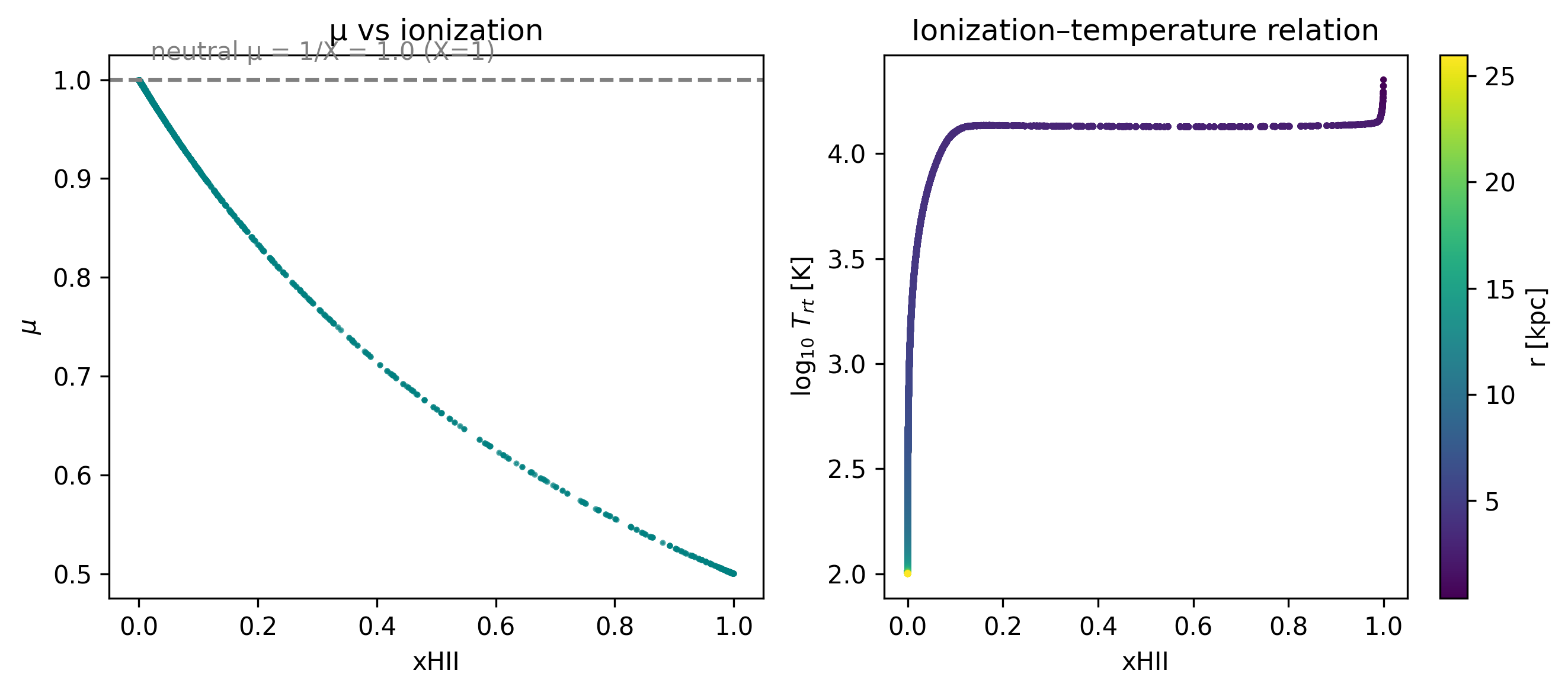

subplot(1,2,1); scatter(xh, q[:mu], s=2, alpha=0.3, color="teal")
axhline(1.0, ls="--", color="gray"); text(0.02, 1.02, "neutral μ = 1/X = 1.0 (X=1)", color="gray")
xlabel("xHII"); ylabel(L"\mu"); title("μ vs ionization")
subplot(1,2,2); sc = scatter(xh, log10.(q[:T_rt]), c=r_kpc, s=3, cmap="viridis")
colorbar(sc, label="r [kpc]"); xlabel("xHII"); ylabel(L"$\log_{10}\,T_{rt}$ [K]")
title("Ionization–temperature relation"); tight_layout();
(T_const_max = maximum(q[:T]), T_rt_max = maximum(q[:T_rt]))

(T_const_max = 55977.75489365413, T_rt_max = 21275.378385872624)

Radiation to matter rates & ionization balance

The radiation field drives the gas. From the RT object: the photoionization rate Γ_HI = Σ_g c·Np_g·σ_g s⁻¹ and the photoheating rate per HI atom. From the hydro object: the recombination rate α_B(T)·n_e·n_HII. In photoionization equilibrium these balance locally: Γ·n_HI ≈ α·n_e·n_HII.

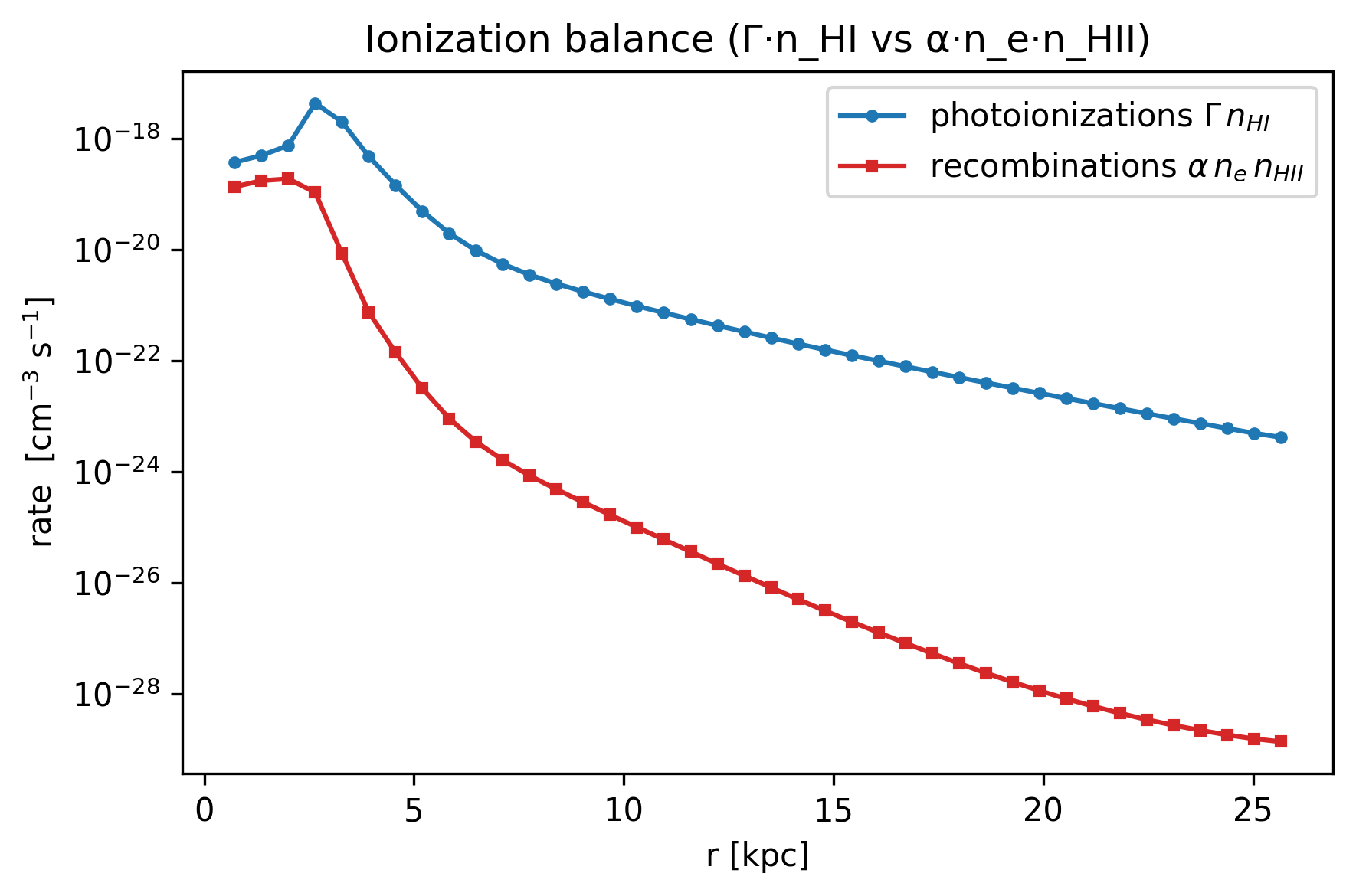

Quantities that couple both objects (:photoionizations, :ionization_balance) are requested on the RT object with hydro_data=gas (both loaded over the same cells, Mera checks the alignment). The radial profile below shows the two rates tracking in shape through the ionized interior. They are not yet equal: at this early time t ≈ 20 Myr ≪ t_rec ≈ 120 Myr (t/t_rec ≈ 0.16) the front is still expanding toward R_S, so photoionizations currently outpace recombinations (core ratio ≈ 5 > 1). Exact local balance (ratio → 1) is reached only asymptotically (t ≫ t_rec).

@show maximum(getvar(rt, :Gamma_HI))          # photoionization rate [1/s]
@show maximum(getvar(rt, :photoheating_HI))   # photoheating per HI atom [erg/s]

# photoionizations (Γ·n_HI, couples rt+gas) vs recombinations (α_B(T)·n_e·n_HII, gas)
pion = getvar(rt, :photoionizations, hydro_data=gas)
rec  = getvar(gas, :recomb_rate)
rcb, pion_r = radial_mean(r_kpc, pion)
_,   rec_r  = radial_mean(r_kpc, rec)
core = getvar(gas, :xHII) .> 0.9
@show round(sum(pion[core]) / sum(rec[core]), digits=2)   # >1 ⇒ still ionizing (t ≪ t_rec); → 1 only as t ≫ t_rec
@show maximum(getvar(rt, :ionization_balance, hydro_data=gas))   # Γ·n_HI − α·n_e·n_HII

figure(figsize=(6,4))
semilogy(rcb, pion_r, "-o", ms=3, color="C0", label=L"photoionizations $\Gamma\,n_{HI}$")
semilogy(rcb, rec_r,  "-s", ms=3, color="C3", label=L"recombinations $\alpha\,n_e\,n_{HII}$")
xlabel("r [kpc]"); ylabel(L"rate  [cm$^{-3}$ s$^{-1}$]")
legend(loc="upper right"); title("Ionization balance (Γ·n_HI vs α·n_e·n_HII)"); tight_layout();

maximum(getvar(rt, :Gamma_HI)) = 1.1379022132736983e-12
maximum(getvar(rt, :photoheating_HI)) = 1.357061014902275e-23
round(sum(pion[core]) / sum(rec[core]), digits = 2) = 4.2
maximum(getvar(rt, :ionization_balance, hydro_data = gas)) = 3.2746012509460365e-18

Physical units & the descriptor

getinfo parsed the RT descriptor (info_rt) into info.descriptor.rt: the unit factors unit_np/unit_pf, the per-group group_egy, and rtPhotonGroups (cross-sections, band edges). Two ways to physical units: dedicated cgs symbols (:Np1_cgs, :Fmag1_cgs, :rad_energy_density, these return fixed cgs and ignore a unit argument), and the general getvar(obj, :var, :unit) route for plain quantities (as we used for radius in kpc). We lead with the radiation energy density u = Np·unit_np·egy, it carries the eV factor and is genuinely ~10⁻¹³ erg cm⁻³. (Here Np1_cgs happens to equal the code value only because unit_np≈1 in this run.)

@show info.descriptor.rt[:group_egy]
@show info.descriptor.rtPhotonGroups[1]                 # band 1: egy_eV, csn_cm2, cse_cm2
@show maximum(getvar(rt, :rad_energy_density))          # [erg cm^-3]
@show extrema(getvar(rt, :Np1_cgs))                     # = code value here only (unit_np≈1)

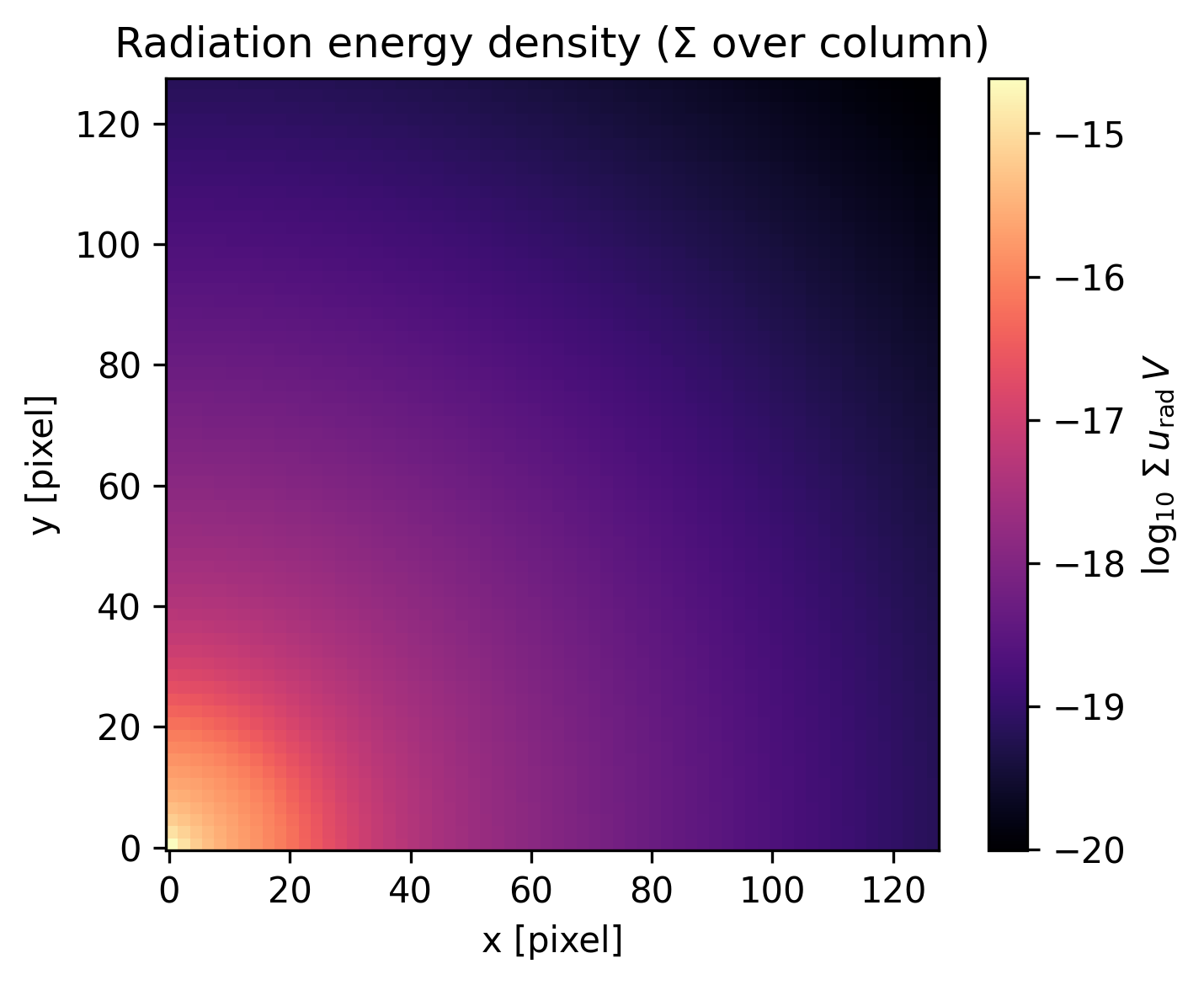

um = projection(rt, :rad_energy_density, mode=:sum, verbose=false, show_progress=false)
show_map(um.maps[:rad_energy_density]; logscale=true, cmap="magma",
         clabel=L"$\log_{10}\,\Sigma\,u_{\rm rad}\,V$", ttl="Radiation energy density (Σ over column)")

info.descriptor.rt[:group_egy] = [18.85, 35.08, 65.67]
info.descriptor.rtPhotonGroups[1] = Dict{Symbol, Any}(:cse_cm2 => [2.78e-18, 0.0, 0.0], :egy_eV => 18.85, :csn_cm2 => [3.0e-18, 0.0, 0.0])
maximum(getvar(rt, :rad_energy_density)) = 1.1090467888595723e-13
extrema(getvar(rt, :Np1_cgs)) = (1.9695717303063266e-49, 0.0010425690408447943)

Further quantities & a quantitative Strömgren check

Other RT quantities are one call each (per-group reduced flux, physical flux, per-group energy density, neutral fraction :xHI). Finally we close the loop on the physics we expected: compute the Strömgren radius from the source rate and compare to the measured front. Ṅγ is a hand-entered namelist constant (not in the cell data); α_B is the case-B coefficient at ~10⁴ K; n_H comes from the data. At this early time t ≪ t_rec, so the front is still expanding toward R_S, the right comparison is the time-dependent r_I(t) = R_S(1-e^{-t/t_rec})^{1/3}.

@show maximum(getvar(rt, :reducedflux1))
@show maximum(getvar(rt, :Fmag1_cgs))
@show maximum(getvar(rt, :photon_energy_density1))
@show extrema(getvar(gas, :xHI))

Ndot = 5.0e48; alpha_B = 2.59e-13; kpc = 3.085677e21          # Ṅγ from stromgren.nml; case-B α_B
nH   = mean(getvar(gas, :n_HII) .+ getvar(gas, :n_HI))        # total H [cm^-3]
R_S  = (3Ndot / (4π * alpha_B * nH^2))^(1/3) / kpc            # asymptotic Strömgren radius [kpc]
t    = info.time * info.scale.s; t_rec = 1 / (alpha_B * nH)
r_I  = R_S * (1 - exp(-t / t_rec))^(1/3)                      # time-dependent I-front [kpc]
println("n_H              = ", round(nH, sigdigits=3), " cm^-3")
println("R_S (asymptotic) = ", round(R_S, digits=2), " kpc")
println("r_I(t=", round(info.time*info.scale.Myr, digits=0), " Myr) = ", round(r_I, digits=2),
        " kpc   (t_rec = ", round(t_rec/3.156e13, digits=0), " Myr)")
println("measured front   = ", round(ifront, digits=2), " kpc   → still expanding toward R_S")

maximum(getvar(rt, :reducedflux1)) = 0.9888163855508687
maximum(getvar(rt, :Fmag1_cgs)) = 13086.144286562321
maximum(getvar(rt, :photon_energy_density1)) = 3.14866584114071e-14
extrema(getvar(gas, :xHI)) = (0.00036018407894478077, 0.9999979654335612)
n_H              = 0.001 cm^-3
R_S (asymptotic) = 5.39 kpc
r_I(t=30.0 Myr) = 3.24 kpc   (t_rec = 122.0 Myr)
measured front   = 2.61 kpc   → still expanding toward R_S

Summary, RT calls at a glance

call	result
`getinfo(output, path)`	read the snapshot header + RT descriptor → `InfoType`
`getrt(info)`	load RT leaf-cells → `RtDataType`
`getvar(rt, :Np1)` / `[:Np1,:Fx1,:Fy1]`	one / several photon fields
`getvar(rt, :Fmag1)`, `:Np_total`, `:reducedflux1`	flux magnitude, total density, reduced flux
`getvar(rt, :r_sphere, :kpc, center=…)`	geometry + unit conversion
`subregion` / `shellregion`	spatial selection on RT
`projection(rt, var; mode=:standard/:sum)`	2D average / sum map (volume-weighted)
`info.descriptor.rt[:group_egy]`, `rtPhotonGroups`	photon-group / energy-band properties
`gethydro(info)` → `:xHII`, `:xHI`	ionization state (via `iIons`)
`getvar(gas, [:n_HII,:n_HI,:n_e])`	ionization-state densities [cm⁻³]
`getvar(rt, :Gamma_HI)`, `:photoheating_HI`	photoionization / photoheating rate
`getvar(gas, :recomb_rate)`	case-B recombination rate [cm⁻³ s⁻¹]
`getvar(rt, :ionization_balance, hydro_data=gas)`	radiation to gas coupling (Γ·nHI − α·nₑ·nHII)
`getvar(gas, :em_recomb)`	recombination-emission proxy `n_HII²`
`getvar(gas, [:mu,:T,:T_rt],[…])`	μ and RT-aware temperature [K]
`getvar(rt, :Np1_cgs)`, `:rad_energy_density`	physical (cgs) photon density / energy density
Strömgren check: `R_S`, `r_I(t)` vs measured I-front	quantitative validation (closes the opening prediction)

Photon transport (rt) and ionization state (gas) are separate objects bridged by iIons; everything runs through the one getvar / projection pipeline.
