Multi-Threaded RAMSES File Reading with Mera.jl: Performance Guide

Prerequisites

Note: This guide provides instructions for both juliaup managed installations (with version specifiers like julia +1.11) and standard Julia installations. Simply use your preferred Julia invocation style, ensuring you have Julia 1.10 or higher for optimal benchmarking performance.

Julia version: 1.10 or higher is required.
Operating System: Linux, macOS, or Windows (tested on Linux/macOS).
Basic Julia knowledge: Familiarity with the Julia REPL or Jupyter notebooks is helpful.

Modern astrophysics simulations generate massive volumes of data that require efficient processing. In simulations that run on multiple CPU cores—often producing numerous related output files—loading the resulting RAMSES files can become a significant bottleneck, slowing down your workflow. This guide demonstrates how to leverage multithreaded file loading in Mera to significantly accelerate your data analysis process.

Quick Benefits Overview

Why multithreading helps: While one CPU core waits for disk operations, other cores can start reading additional files simultaneously
What you measure: total read time, memory cleanup (garbage collection) overhead, and result consistency
When to stop adding threads: performance stops improving or memory cleanup takes more than 10-15% of total time
Hardware considerations: Traditional drives work best with 4-8 threads; NVMe drives keep scaling much higher.

Understanding Garbage Collection (GC) in Your Results

What Garbage Collection Does

Garbage collection is Julia's automatic system for freeing up memory that your programs no longer need. Think of it like an automatic cleanup service running in the background, removing data that's no longer being used so your system doesn't run out of memory space.

How GC Works with Multiple Threads

When running multiple threads to read files, each thread creates data in memory (like file contents and processing results). After processing, GC automatically cleans up this data. However, GC has overhead costs:

GC uses separate threads from your file-reading threads
GC pauses can slow down your main work when memory cleanup becomes intensive
Too many threads can overwhelm the GC system, causing cleanup overhead to become a bottleneck

Why This Matters for Your Thread Optimization

Your benchmark results show GC time as a percentage of total execution time. This helps you understand:

Good performance: GC time stays below 10-15% of total time
Warning signs: When GC time rises significantly, you're approaching your system's threading limits
Optimal thread count: The point where you get maximum file reading speed without triggering excessive memory management overhead

Common Performance Barriers

Storage speed limits - a single disk drive can only serve one request efficiently at a time
File system overhead - opening thousands of small RAMSES files creates extra work for metadata operations
Memory pressure - too many threads can trigger heavy garbage collection, stealing CPU cycles from actual work

Hardware Requirements

Minimum System Requirements:

RAM: 16 GB minimum (32 GB recommended for large simulations)
Storage: 100 GB available space for test data and results
CPU: Multi-core processor (4+ cores recommended for meaningful threading tests)
Julia: Version 1.10 or higher

Optimal Hardware Configurations:

Traditional drives (HDD): Best performance with 4-8 threads
NVMe SSD drives: Can efficiently scale to 32+ threads
Server environments: Network storage may limit optimal thread counts

Setting Up Your Test Environment

1. Create a Clean Julia Project

Creating a dedicated Julia environment ensures reproducible results and clean dependency management. Start by creating a project directory and initializing the Julia package environment. You can do this in a terminal or in a Jupyter notebook cell (using the ; shell escape):

mkdir ramses_reading
cd ramses_reading
julia --project=.

2. Install Required Packages

Download and unzip the test suite

# Using curl
curl -L -o RAMSES_reading_stats.zip https://github.com/ManuelBehrendt/Mera.jl/raw/master/src/benchmarks/RAMSES_reading/downloads/RAMSES_reading_stats.zip

# Using wget (alternative)
wget https://github.com/ManuelBehrendt/Mera.jl/raw/master/src/benchmarks/RAMSES_reading/downloads/RAMSES_reading_stats.zip -O RAMSES_reading_stats.zip

Unzip the downloaded file:

unzip RAMSES_reading_stats.zip

Install the required Julia packages

Important: Before running Julia code, always activate your project environment. In the Julia REPL or a Jupyter notebook cell, run:

using Pkg
Pkg.activate(".")
Pkg.add(["Mera", "CairoMakie", "Glob"])
Pkg.instantiate()  # Ensure all dependencies are properly installed

This approach creates Project.toml and Manifest.toml files that lock exact package versions, ensuring consistent results across different systems.

3. Project Structure

Your project directory should look like this:

ramses_reading/
├── Project.toml         # Dependency specifications
├── Manifest.toml        # Exact package versions (auto-generated)
├── run_test.sh          # Automated thread count testing (calls run_test.jl)
├── run_test.jl          # Core timing measurements
├── run_test_plots.jl    # Visualization of the measurements (outputs PNG)
└── RAMSES_reading_stats.zip  # Downloaded test suite

Prepare the files and How the Benchmark Framework Works

Core Timing Script (`run_test.jl`)

Reads hydro, particle, and gravity files default: ten times each for statistical reliability
Records total execution time, garbage collection overhead, and any errors
Requires only two simple inputs:
- Simulation path: Edit the path variable to point to your RAMSES output folder (see examples in the script)
- Output number: Set output_number = 250 to the snapshot number you want to benchmark

Automated Test Runner (`run_test.sh`)

Systematically tests different thread configurations from 1 to 64 threads
Make sure the file is executable, otherwise run:
```
chmod +x run_test.sh
bash run_test.sh
```

Edit the thread configurations in run_test.sh to match your server's capabilities:

configs=(
    "1:1"     # 1 compute thread, 1 GC thread
    "2:1"     # 2 compute threads, 1 GC thread
    "4:2"     # 4 compute threads, 2 GC threads
    "8:4"     # 8 compute threads, 4 GC threads
)

Results are saved as structured JSON files and summary CSV tables.

Visualisation Engine (`run_test_plots.jl`)

After completing the benchmark, generate comprehensive performance visualizations using the analysis script:

Combines most benchmark results into comprehensive reports

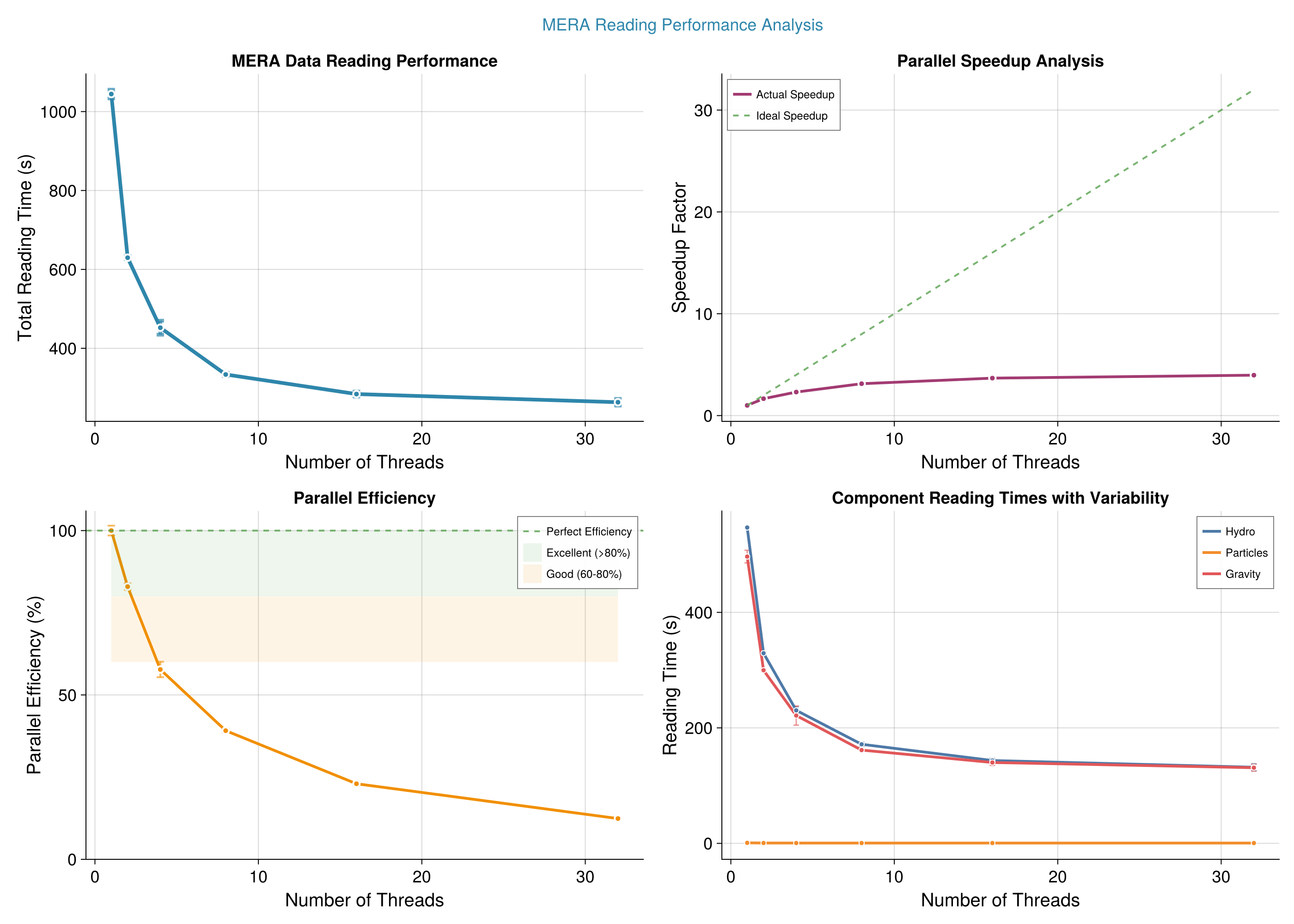

Generates performance visualizations showing:
- Total read time vs. thread count
- Speed-up curves compared to single-threaded baseline
- Component-specific timing breakdowns

Running Your Performance Tests

chmod +x run_test.sh
bash run_test.sh

After completing the benchmark, generate comprehensive performance visualizations using the visualisation script. You can run this in the Julia REPL or in a Jupyter notebook cell (with ;):

# For juliaup managed installations
julia +1.11 --project=. run_test_plots.jl

# For standard Julia installations
julia --project=. run_test_plots.jl

Tip: After your analysis is complete, you can organize your results by moving the generated CSV and JSON files to a dedicated folder named with the current date (e.g., benchmarks_20250726/). For completeness and reproducibility, also copy the plotting script (run_test_plots.jl) into this folder. This keeps your benchmark data and analysis scripts together and your project directory tidy.

Understanding Your Results

Performance Curve Analysis

Chart Type	Key Indicators	Recommended Action
Read Time vs. Threads	Time drops sharply initially, then levels off	Choose thread count just before the curve flattens
Speed-Up Comparison	Gap between ideal and actual performance lines	Large gaps suggest tuning buffer sizes or GC threads
GC Overhead Percentage	Should remain under 10-15%	Higher values indicate thread count reduction needed
Component Breakdown	One component much slower than others	Investigate file sizes, compression, or format issues

Practical Optimization Guidelines

Start conservative: Test 1, 2, 4, 8 threads first; only jump to 32+ on high-end NVMe storage systems
Monitor GC threads: Many workloads perform well with 2:1 compute-to-GC ratios (e.g., 8 compute + 4 GC threads)
Reuse memory buffers: Avoiding repeated allocations often reduces GC overhead by 50%+
Storage-specific limits: Traditional drives hit performance walls around 4-8 threads due to seek overhead
Network storage considerations: Limit threads to avoid saturating network bandwidth, causing requests to queue rather than execute

Troubleshooting Common Issues

Problem	Likely Cause	Solution
Performance decreases after 8 threads	Storage or network bandwidth saturation	Reduce to 4-8 threads
GC overhead exceeds 15%	Too many memory allocations	Reuse buffers, tune `GC_THREADS` setting
Large timing variations between runs	System interference from other processes	Run during low-activity periods
"File not found" errors	Incorrect simulation path	Verify path exists: `ls /your/simulation/path/`
Out of memory errors	Insufficient system RAM	Reduce thread count or use smaller test dataset
Permission denied errors	File access restrictions	Check file permissions: `chmod 755 run_test.sh`
Package installation fails	Network or dependency issues	Try `Pkg.resolve()` or restart Julia REPL

Advanced Troubleshooting

Memory Profiling:

# Monitor memory usage during benchmarks
using Profile, ProfileView
@profile run_reading_benchmark(250, path)
ProfileView.view()

Performance Debugging:

# Enable verbose timing output
ENV["JULIA_DEBUG"] = "Mera"
run_reading_benchmark(250, path)

Implementation and Maintenance

Production Deployment

Document optimal settings for your specific hardware configuration in team documentation
Set environment variables (JULIA_NUM_THREADS, JULIA_NUM_GC_THREADS) for consistent behavior
Implement monitoring to track performance over time and detect degradation

Ongoing Optimization

Run regression tests when hardware or simulation characteristics change
Share configurations with collaborators using Project.toml/Manifest.toml for reproducible environments
Monitor system resources (CPU utilization, memory usage, I/O wait times) during production workloads

Contributing Back to the Community

Document unusual findings in Mera.jl GitHub issues for community benefit
Submit performance improvements as pull requests when you discover optimizations
Share benchmark results that help others with similar hardware configurations

Real-World Performance Validation

Optimal thread configurations emerge from the interaction between your specific server hardware, simulation file characteristics, and system environment. Continuous benchmarking and performance monitoring ensure your computational resources serve your research goals most effectively.

using Mera

# Example: Point to your RAMSES simulation output folder
path = "/path/to/your/ramses/simulation/outputs/"
output_number = 250  # Adjust to your available snapshot

# Get information about the simulation
info = getinfo(output_number, path, verbose=false)

# Display storage overview
storageoverview(info)

Overview of the used disk space for output: [250]
------------------------------------------------------
AMR-Files:      10.85 GB   <2.17 MB>/file
Hydro-Files:    25.46 GB   <5.09 MB>/file
Gravity-Files:  17.82 GB   <3.56 MB>/file
Particle-Files: 39.53 MB   <7.9 KB>/file
Total:          54.3 GB    <3.46 MB>/file avg

mtime: 2024-06-06T10:26:39.133
ctime: 2024-06-06T17:13:46.723

Expected Performance Ranges

Typical Results by Hardware Configuration

Traditional HDD Storage:

1 thread: Baseline performance (100% efficiency)
2-4 threads: 1.5-2.5x speedup (75-90% efficiency)
8+ threads: Diminishing returns (<50% efficiency)

SSD Storage:

1 thread: Baseline performance
2-8 threads: 1.8-6x speedup (90-75% efficiency)
16+ threads: 8-12x speedup (50-75% efficiency)

NVMe/High-end Server Storage:

1 thread: Baseline performance
2-16 threads: Near-linear scaling (80-95% efficiency)
32+ threads: 20-25x speedup (60-80% efficiency)

Interpreting Your Results

Excellent Performance Indicators:

Parallel efficiency >80% up to 8 threads
GC overhead <10% of total time
Consistent timing across multiple runs (low standard deviation)

Performance Warning Signs:

Efficiency drops below 50% with <8 threads (storage bottleneck)
GC overhead >15% (memory pressure)
Large result variations (system interference)

Optimization Recommendations:

Peak efficiency achieved: Your optimal thread count
Performance plateau: Storage or network bandwidth limit reached
Performance degradation: Reduce threads to avoid resource contention

Summary & Checklist

Pre-requisites Verification

[ ] Julia 1.10+ is installed and accessible from command line
[ ] Sufficient system memory (16+ GB for typical RAMSES simulations)
[ ] RAMSES simulation data available locally with known output numbers

Environment Setup

[ ] Project directory created and environment initialized
[ ] Test suite downloaded and unzipped
[ ] Project environment activated before running Julia code (Pkg.activate("."))
[ ] Required packages installed and tested (Mera, CairoMakie, Glob)

Configuration and Execution

[ ] Simulation path and output number configured in run_test.jl
[ ] Thread configurations adjusted for your hardware in run_test.sh
[ ] Benchmark scripts executed successfully
[ ] Results visualized and interpreted using performance guidelines

Results Analysis

[ ] Performance curves analyzed for optimal thread count
[ ] GC overhead monitored and kept within acceptable limits
[ ] Results documented for future reference and team sharing

If you completed all steps above, your benchmarking environment is ready and you can confidently analyze RAMSES file reading performance with Mera.jl!
